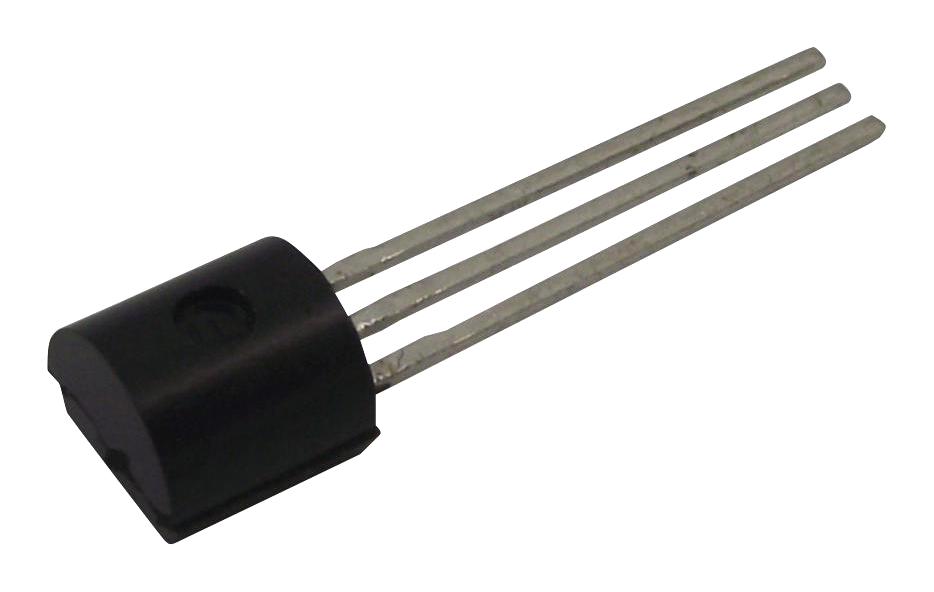

ONSEMI 2N4401TF NPN General Purpose Amplifier
The ONSEMI 2N4401TF is a versatile NPN bipolar junction transistor (BJT) designed for use as a medium power amplifier and switch. It's capable of handling collector currents up to 600mA and is suitable for a wide range of applications including audio amplification, switching circuits, and general-purpose signal amplification. The device features a TO-92 package and is characterized by its ease of use and robust performance. Its thermal characteristics and electrical specifications make it a reliable choice for both hobbyist and professional applications.
ONSEMI 2N4401TF NPN General Purpose Amplifier Specifications:
- Collector-Emitter Voltage: 40 V
- Collector-Base Voltage: 60 V
- Emitter-Base Voltage: 6.0 V
- Collector Current - Continuous: 600 mA
- Operating and Storage Junction Temperature Range: -55 to +150 °C
- Total Device Dissipation: 625 mW
- Thermal Resistance, Junction to Case: 83.3 °C/W
- Thermal Resistance, Junction to Ambient: 200 °C/W
- DC Current Gain (hFE): 20-300
- Collector-Emitter Saturation Voltage: 0.40 V
- Base-Emitter Saturation Voltage: 0.75-1.20 V
- Current Gain - Bandwidth Product: 250 MHz
- Collector-Base Capacitance: 6.5 pF
- Emitter-Base Capacitance: 30 pF
- Input Impedance: 1.0-15.0 kΩ
- Voltage Feedback Ratio: 0.1-8.0 x10-4
- Small-Signal Current Gain: 40-500
- Output Admittance: 1.0-30 μmhos
- Delay Time: 15 ns
- Rise Time: 20 ns
- Storage Time: 225 ns
- Fall Time: 30 ns
Buy the 2N4401TF ONSEMI NPN General Purpose Amplifier | myMectronic
Purchase the ONSEMI 2N4401TF with confidence and enjoy secure online transactions.
Buy Now
Frequently Asked Questions
Where can I buy ONSEMI 2N4401TF?
You can click on the BUY or RFQ button to purchase 2N4401TF from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 2N4401TF?
You can download the 2N4401TF datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 2N4401TF?
ONSEMI
