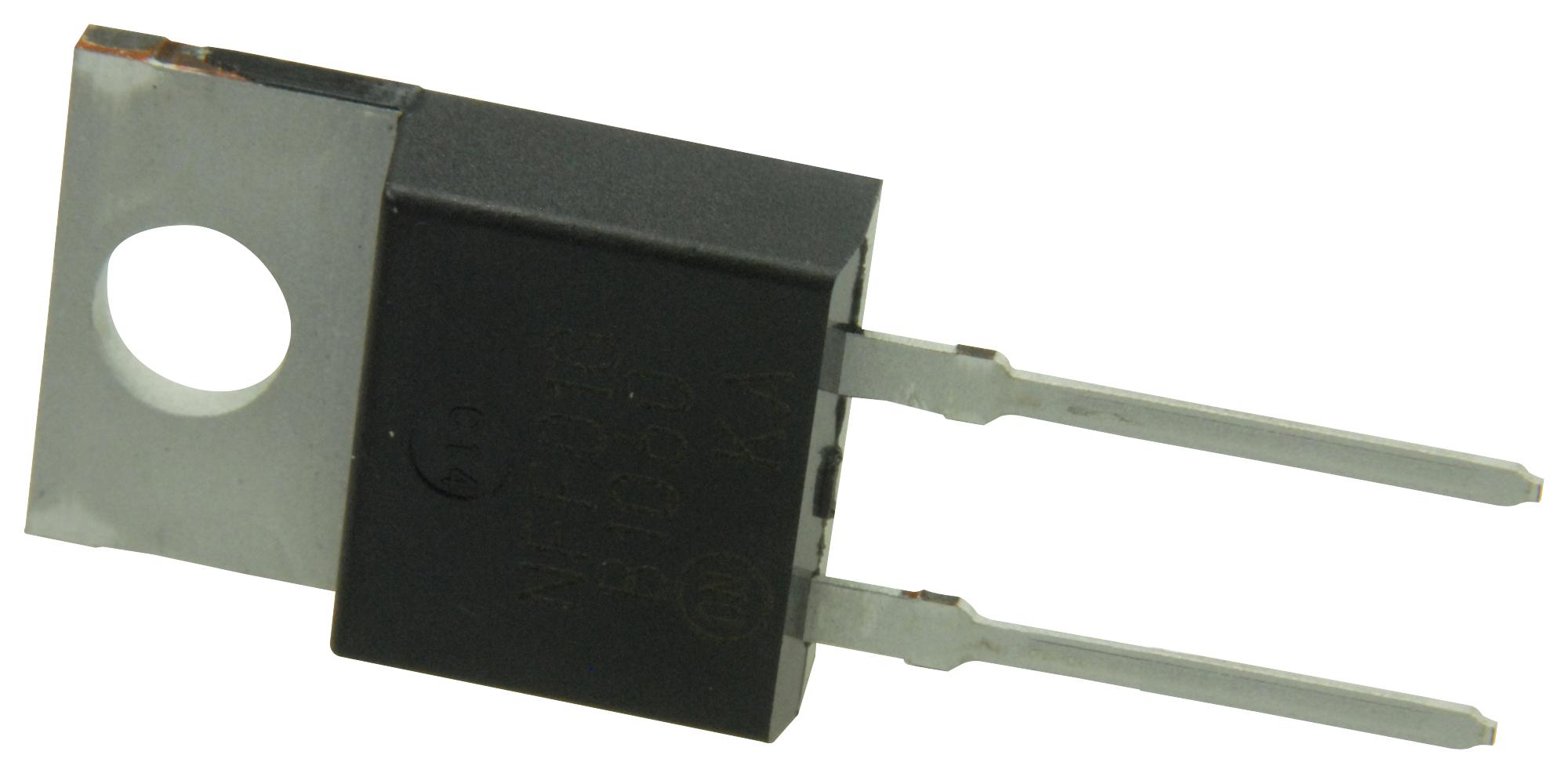

ONSEMI MBR1060G Schottky Barrier Power Rectifier
The MBR1060G is a SWITCHMODE™ Schottky Barrier Power Rectifier housed in a molded epoxy case. It features corrosion-resistant external surfaces and a guard-ring for stress protection. The rectifier offers a low forward voltage drop, resulting in low power loss and high efficiency. It also has a high surge capacity and low stored charge, enabling reliable conduction of majority carriers. Suitable for power management and industrial applications. Note: Due to high market demand, lead times may be extended, and delivery dates are subject to fluctuation. The product is exempt from discounts.
ONSEMI MBR1060G Schottky Barrier Power Rectifier Specifications:
- Peak Repetitive Reverse Voltage: 60 V
- Average Rectified Forward Current: 10 A at 133°C
- Peak Surge Current: 150 A
- Thermal Resistance, Junction-to-Case: 2.0 °C/W
- Thermal Resistance, Junction-to-Ambient: 60 °C/W
- Maximum Instantaneous Forward Voltage: 0.8 V at 10 A, 25°C
- Maximum Reverse Current: 0.10 mA at 25°C
- Operating Junction Temperature: -55°C to +175°C
- Storage Temperature: -55°C to +175°C
- Lead Temperature for Soldering: 260°C for 10 seconds
- Case: TO-220AC, Molded epoxy
- Package: TO-220, 50 Units/Rail
- Guard-ring for stress protection
- Corrosion-resistant external surfaces
- Pb-Free packages available
- Epoxy meets UL 94 V-0 @ 0.125 in
- Low forward voltage: 0.8 V at 10 A, 25°C
- High surge capacity, low stored charge
- Maximum Power Dissipation varies based on conditions
Buy the ON Semiconductor MBR1060G – Reliable Schottky Barrier Rectifier for Industrial Applications
Purchase the MBR1060G power rectifier online today to ensure high-efficiency power management for industrial and electronic applications. With low forward voltage, high surge capacity, and corrosion-resistant epoxy housing, this rectifier offers excellent reliability and performance. Its robust design makes it ideal for power supplies, converters, and automotive systems. Experience fast delivery and secure online ordering to meet your project timelines. Invest in proven quality and advanced power rectification technology—add the MBR1060G to your cart now for dependable operation.
Buy ON Semiconductor MBR1060G now and experience unmatched reliability and high efficiency in power rectification.
Frequently Asked Questions
Where can I buy ONSEMI MBR1060G?
You can click on the BUY or RFQ button to purchase MBR1060G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MBR1060G?
You can download the MBR1060G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MBR1060G?
ONSEMI
