ONSEMI 2N6388G Darlington Power Transistor
The 2N6388G is an NPN plastic Darlington Silicon Power Transistor designed for general-purpose amplification and low-frequency switching applications. It features monolithic construction with integrated base-emitter shunt resistors, making it suitable for industrial use. The transistor supports collector-emitter voltages up to 80V, collector currents up to 15A peak, and power dissipation of 65W. It offers high DC gain, low saturation voltage, and availability in Pb-Free packages. Its robust construction ensures reliable performance in various industrial and electronic switching circuits, making it ideal for robust amplifier designs and low-speed switching tasks.
ONSEMI 2N6388G Darlington Power Transistor Specifications:
- Collector-Emitter Voltage: 60 V (2N6387), 80 V (2N6388)
- Collector Base Voltage: 60 V (2N6387), 80 V (2N6388)
- Emitter-Base Voltage: 5.0 V
- Collector Current - Continuous: 10 Adc (max), Peak 15 Adc
- Power Dissipation: 65 W @ 25°C, Derate 0.52 W/°C above 25°C
- Thermal Resistance, Junction-to-Ambient: 62.5 °C/W
- Collector-Emitter Saturation Voltage: Max 2.0 V
- DC Current Gain: 1,000 to 20,000
- Operating Temperature Range: -65°C to +150°C
- Package: TO-220AB (Pb-Free options available)

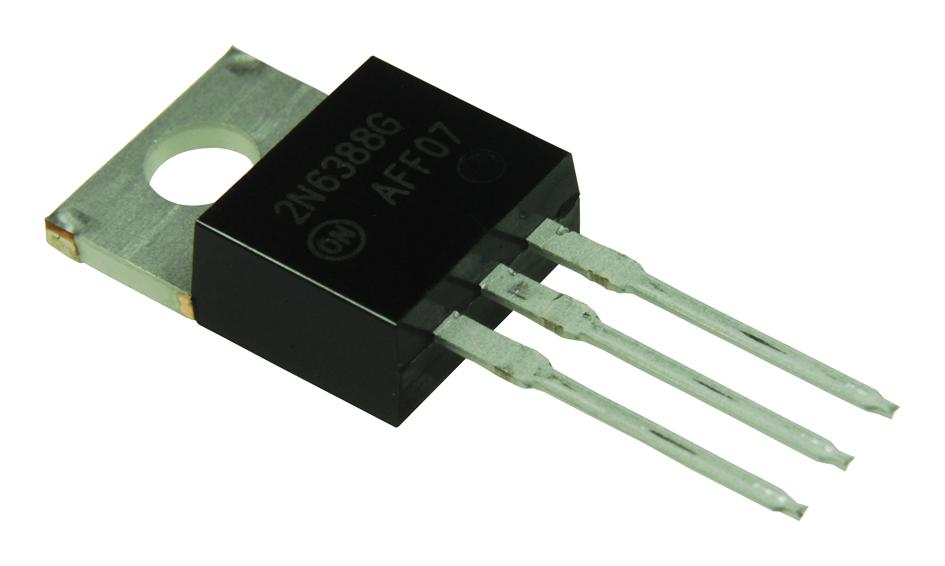

Buy the Buy ON Semiconductor 2N6388G Darlington Power Transistor Part Number 2N6388G Online
Order the ON Semiconductor 2N6388G Darlington Power Transistor online today to ensure efficient, reliable power amplification and low-speed switching for industrial applications. Featuring high collector-emitter voltage ratings, exceptional current gain, and robust thermal characteristics, this transistor is perfect for industrial automation, amplifier circuits, and electronic switching solutions. Its monolithic construction with built-in resistors guarantees durability and consistent performance. Make your purchase now to benefit from long-lasting performance and seamless integration in your electronic projects, backed by ON Semiconductor’s trusted quality.
Buy ON Semiconductor 2N6388G power transistor now and experience unmatched reliability and enhanced industrial performance in amplification and switching tasks.
Frequently Asked Questions
Where can I buy ONSEMI 2N6388G?
You can click on the BUY or RFQ button to purchase 2N6388G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 2N6388G?
You can download the 2N6388G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 2N6388G?
ONSEMI
