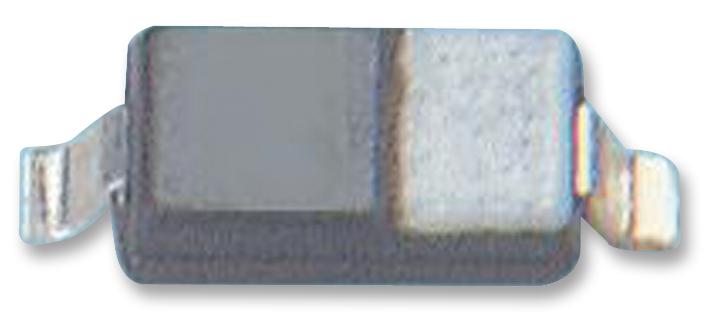

ONSEMI BAS21HT1G High Voltage Switching Diode
The BAS21HT1G is a high voltage switching diode in a SOD-323 package, designed for automotive and industrial applications. It features a maximum reverse voltage of 250 V, peak forward current of 200 mA, and accommodates high-reliability needs with Pb-Free construction. Suitable for switching and protection circuits, it offers low capacitance and fast recovery times essential for efficient high-voltage switching. Certified under AEC-Q101, it ensures quality and durability in demanding environments, making it ideal for automotive electronics, power management, and switching applications.
ONSEMI BAS21HT1G High Voltage Switching Diode Specifications:
- Maximum Reverse Voltage: 250 V
- Peak Forward Current: 200 mA
- Repetitive Peak Forward Current: 500 mA
- Non-Repetitive Peak Forward Surge: 625 mA
- Total Device Dissipation: 200 mW at 25°C
- Thermal Resistance, Junction to Ambient: 635 °C/W
- Junction and Storage Temperature Range: -55°C to +150°C
- Reverse Leakage Current: 0.4 μA at 200 V, 100 μA at 150°C
- Reverse Breakdown Voltage: 250 V
- Forward Voltage: 1.0 V at 100 mA, 1.25 V at 200 mA
- Diode Capacitance: 5.0 pF
- Reverse Recovery Time: 50 ns
- Case: SOD-323, Issue H
- Lead Material: Pb-Free, Sn-annealed
- Package Dimensions: Length 1.6 mm, Width 0.83 mm, Height 0.63 mm
Buy the ON Semiconductor BAS21HT1G – Reliable High Voltage Switching Diode for Industrial Applications
Enhance your electronic designs with the high voltage switching diode, BAS21HT1G. Featuring 250 V reverse voltage, 200 mA forward current, and Pb-Free construction, it ensures durability and high performance in automotive and industrial applications. Its small SOD-323 package allows easy integration into compact circuits. Certified under AEC-Q101, it guarantees quality and reliability for demanding environments. Ideal for switching, protection, and power management, this diode provides fast recovery times and minimal leakage, making it an essential component for modern electronics.
Buy ON Semiconductor BAS21HT1G now and experience unmatched reliability and performance in high-voltage switching circuits.
Frequently Asked Questions
Where can I buy ONSEMI BAS21HT1G?
You can click on the BUY or RFQ button to purchase BAS21HT1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part BAS21HT1G?
You can download the BAS21HT1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of BAS21HT1G?
ONSEMI
