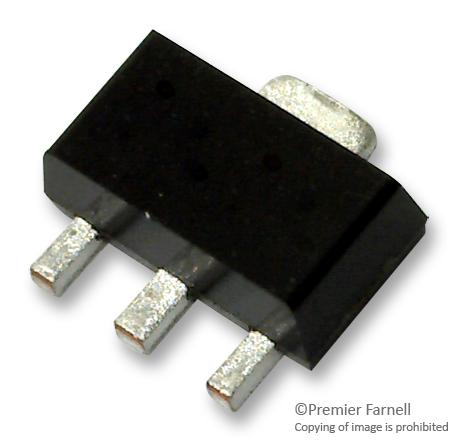

ONSEMI 2SD1623STDE Power Transistor
The 2SD1623 is a high-current power transistor designed for switching and amplification applications in electrical and electronic equipment. It features a collector-emitter voltage of 50V, collector current up to 2A with pulse ratings of 4A, and low saturation voltage for efficient operation. The device is mounted in a PCP package, offering robust thermal performance with dissipation up to 13W when mounted on a ceramic substrate. Its features include fast switching speed, high current capacity, and wide application versatility in voltage regulators, relay drivers, and lamp drivers, supporting compact hybrid circuit designs.
ONSEMI 2SD1623STDE Power Transistor Specifications:
- Collector-to-Base Voltage: 60 V
- Collector-to-Emitter Voltage: 50 V
- Emitter-to-Base Voltage: 6 V
- Collector Current: 2 A
- Pulse Collector Current: 4 A
- Collector Dissipation: 13 W (mounted on ceramic substrate)
- Gain-Bandwidth Product: 150 MHz
- Output Capacitance: 222 pF
- Saturation Voltage (VCE(sat)): 0.3–0.15 V
- Base-to-Emitter Saturation Voltage: 2 V
- Collector-to-Base Breakdown Voltage: 60 V
- Collector-to-Emitter Breakdown Voltage: 50 V
- Emitter-to-Base Breakdown Voltage: 6 V
- Turn-On Time: 60 ns
- Storage Time: 550 ns
- Fall Time: 80 ns
- Operating Temperature Range: -55°C to +150°C
- Package Type: PCP
- Package Dimensions: External mm 183x72x185, Reel label and outer box labels included
- Maximum Operating Junction Temperature: 150°C
- Thermal Resistance, junction-to-ambient: specified for application
- Mounting: On ceramic substrate (250mm x 0.8mm)
