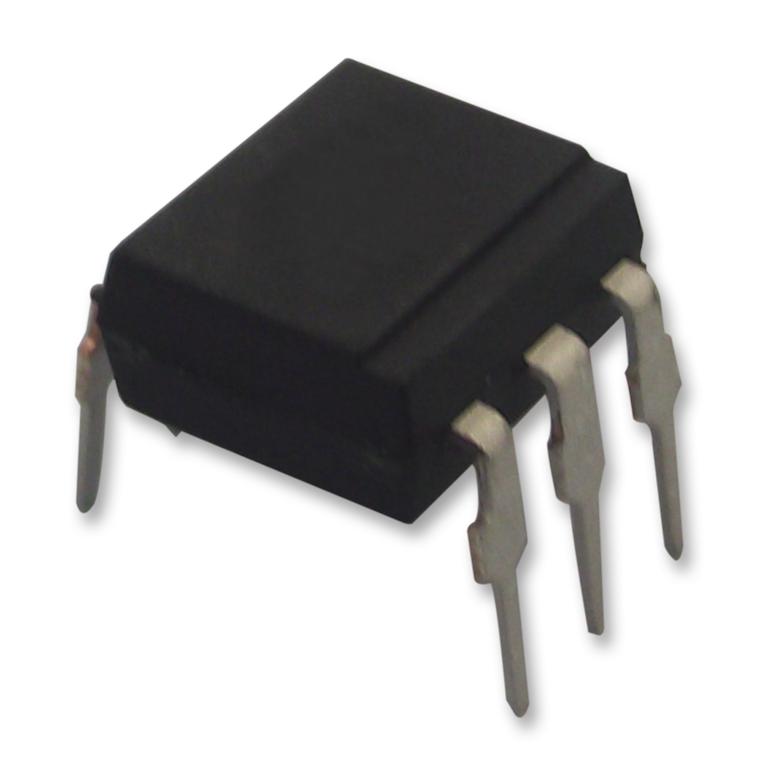

ONSEMI H11F1M Photo FET Optocoupler
The H11F1M is a photo FET optocoupler featuring a Gallium-Aluminum-Arsenide IRED emitting diode coupled to a symmetrical silicon photo-detector. It provides electrical isolation and is ideal for controlling low-level analog signals, with capabilities as a remote variable resistor, analog switch, and optically isolated A/D converter. Its low capacitance of 15pF, high isolation resistance over 100GΩ, and extremely low offset voltage make it suitable for applications such as isolated variable attenuators, automatic gain control, and active filter tuning. Mounted in dual in-line packages, it guarantees distortion-free signal control and robust electrical isolation.
ONSEMI H11F1M Photo FET Optocoupler Specifications:
- LED Forward Voltage: 1.3 to 1.75 V at 16 mA
- Reverse Voltage: 5 V
- Capacitance: 15 pF at 1 MHz
- Breakdown Voltage: 30 V (H11F1M and H11F2M), 15 V (H11F3M)
- Forward Current (Peak): 1 A (10 μs pulse, 1%)
- Emitter Power Dissipation: 100 mW at 25°C
- Detector Power Dissipation: 300 mW at 25°C
- Isolation Resistance: >10^13 Ω at 500 VDC
- Isolation Capacitance: 0.2 pF at 1 MHz
- Maximum Storage Temperature: -40°C to +150°C
- Maximum Operating Temperature: -40°C to +100°C
- Lead Solder Temperature: 260°C for 10 seconds
- Breakdown Voltage: 30 V (H11F1M, H11F2M), 15 V (H11F3M)
- Maximum Continuous Detector Current: 100 mA
- Insulation Voltage: 850 Vpeak
- Maximum Working Insulation Voltage: 850 Vpeak
