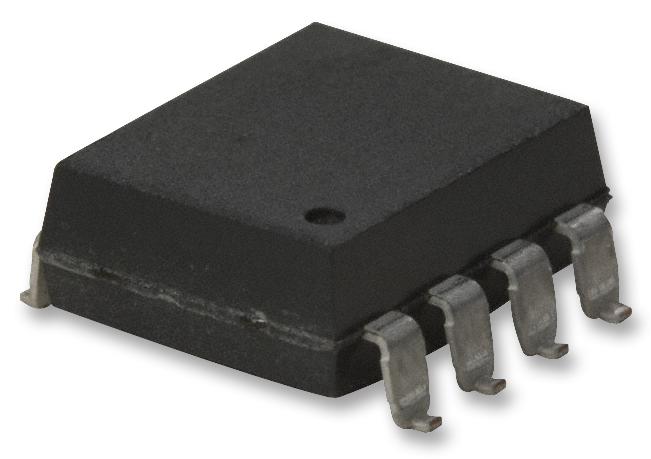

ONSEMI 6N136SDM High Speed Transistor Optocoupler
The ONSEMI 6N136.SDM is a single-channel high-speed transistor optocoupler that combines an AlGaAs LED with a high-speed photodetector transistor. This design significantly enhances speed compared to conventional optocouplers by minimizing the input transistor's base-collector capacitance. The device is ideal for applications such as line receivers, pulse transformer replacements, output interfaces to CMOS/LSTTL/TTL circuits, and wide-bandwidth analog coupling. It offers high speed (1 Mbit/s), CTR guaranteed from 0°C to 70°C, and superior common-mode rejection. The 6N136.SDM is a Pb-Free device suitable for safe electrical insulation within specified limits.
ONSEMI 6N136SDM High Speed Transistor Optocoupler Specifications:
- Storage Temperature: -40 to +125 °C
- Operating Temperature: -40 to +100 °C
- Junction Temperature: -40 to +125 °C
- Lead Solder Temperature: 260 °C for 10 s
- DC/Average Forward Input Current Each Channel: 25 mA
- Peak Forward Input Current Each Channel: 50 mA
- Peak Transient Input Current Each Channel: 1.0 A
- Reverse Input Voltage Each Channel: 5 V
- Input Power Dissipation Each Channel: 45 mW
- Average Output Current Each Channel: 8 mA
- Peak Output Current Each Channel: 16 mA
- Emitter-Base Reverse Voltage: 5 V
- Supply Voltage: 4.5 to 20.0 V
- Input Current, Low Level: 0 to 250 μA
- Input Current, High Level: 6.3 to 20.0 mA
- Input Forward Voltage: 1.45 to 1.80 V
- Temperature Coefficient of Forward Voltage: -1.7 mV/°C
