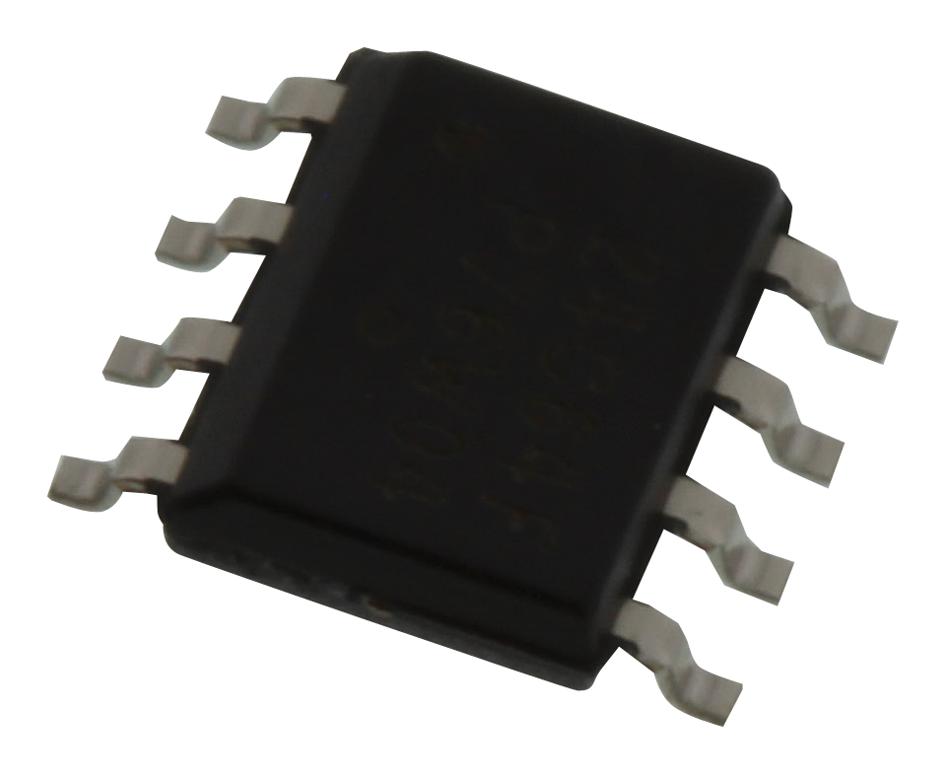

ONSEMI CAT24C64WIGT3 Serial EEPROM
The CAT24C64 is a 64 Kb CMOS Serial EEPROM with 8192 x 8 organization, supporting Standard, Fast, and Fast-Plus protocols. It features a 32-byte page write buffer, low power CMOS technology, and a wide voltage range of 1.7V to 5.5V. Its robust design includes hardware write protection, noise suppression filters, and high endurance of 1 million cycles with a 100-year data retention. Available in various packages (PDIP, SOIC, TSSOP, UDFN, WLCSP), it is suitable for industrial applications requiring reliable data storage and easy bus interfacing.
ONSEMI CAT24C64WIGT3 Serial EEPROM Specifications:
- Memory Capacity: 64 Kb (8192 x 8 bits)
- Voltage Range: 1.7V to 5.5V
- Page Write Buffer: 32 bytes
- Endurance: 1,000,000 Program/Erase Cycles
- Data Retention: 100 Years
- Supported Protocols: Standard (100 kHz), Fast (400 kHz), Fast-Plus (1 MHz)
- Package Options: PDIP, SOIC, TSSOP, UDFN, WLCSP
- Noise Suppression: Schmitt Triggers on I2C inputs
- Write Protection: Hardware via WP pin
- Operating Temperature: -40°C to +125°C (extended industrial range)
- RoHS, Halogen Free, BFR Free, Pb-Free
- Supports multiple devices on same bus with external address pins
- Power Consumption: Low power CMOS technology, standby current 1 µA
- Internal organization: 8192 words of 8 bits each
Buy the ON Semiconductor Series 64 Kb CMOS Serial EEPROM: CAT24C64WIGT3
Purchase the reliable ON Semiconductor Series 64 Kb CMOS Serial EEPROM CAT24C64WIGT3 online today. This high-endurance, low power memory supports multiple protocols (100 kHz to 1 MHz) with a 32-byte page buffer, making it ideal for industrial, consumer, and embedded applications. Its robust design includes hardware write protection, noise filters, and supports multiple devices on the same bus via address pins. With 1 million program cycles and 100-year data retention, it ensures long-term, dependable data storage, available in multiple packages for easy integration.
Order your ON Semiconductor Series 64 Kb CMOS Serial EEPROM CAT24C64WIGT3 today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy ONSEMI CAT24C64WIGT3?
You can click on the BUY or RFQ button to purchase CAT24C64WIGT3 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part CAT24C64WIGT3?
You can download the CAT24C64WIGT3 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of CAT24C64WIGT3?
ONSEMI
