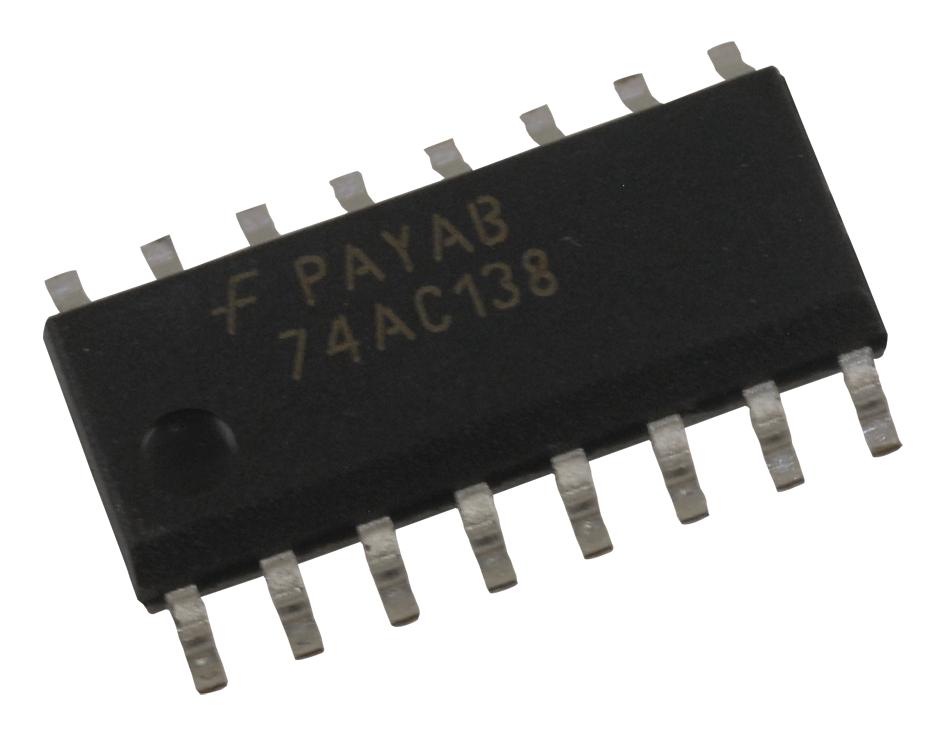

ONSEMI 74AC138SC 1-of-8 Decoder/Demultiplexer
The ONSEMI 74AC138SC is a high-speed 1-of-8 decoder/demultiplexer designed for various applications including high-speed bipolar memory chip select address decoding. It offers multiple input enable features, allowing for parallel expansion to a 1-of-24 or 1-of-32 decoder. The device's active-low outputs and TTL-compatible inputs make it versatile for a wide range of digital logic applications. It is ideally suited for systems requiring efficient and reliable data routing and address decoding.
ONSEMI 74AC138SC 1-of-8 Decoder/Demultiplexer Specifications:
- ordering_code_74AC138SC: 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow
- ordering_code_74AC138SJ: 16-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
- ordering_code_74AC138MTC: 16-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
- ordering_code_74AC138PC: 16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300" Wide
- ordering_code_74ACT138SC: 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow
- ordering_code_74ACT138SJ: 16-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
- ordering_code_74ACT138PC: 16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300" Wide
- inputs: Address Inputs (A0–A2), Enable Inputs (E1–E2), Enable Input (E3)
- outputs: Outputs (O0–O7)
- description_1: High-speed 1-of-8 decoder/demultiplexer
- description_2: Multiple input enable for easy expansion
- description_3: Active LOW mutually exclusive outputs
- description_4: Outputs source/sink 24 mA
- description_5: ACT138 has TTL-compatible inputs
Buy the 74AC138SC ONSEMI 1-of-8 Decoder/Demultiplexer | myMectronic
Purchase the ONSEMI 74AC138SC 1-of-8 Decoder/Demultiplexer securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy ONSEMI 74AC138SC?
You can click on the BUY or RFQ button to purchase 74AC138SC from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 74AC138SC?
You can download the 74AC138SC datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 74AC138SC?
ONSEMI
