ONSEMI 74LCX32MTCX Quad Logic Gate
The 74LCX32 is a quad 2-input OR gate featuring low voltage operation, 5V tolerant inputs, and high-speed CMOS technology. It supports interface compatibility between 3V and 5V systems with max propagation delays of 5.5 ns. Designed with advanced noise/EMI reduction circuitry, it has excellent ESD performance with >2000V Human Body Model and >150V Machine Model. Available in leadless DQFN, TSSOP, SOIC, and SOP packages, it provides high drive current outputs up to 24mA and reliable latch-up performance exceeding JEDEC standards, suited for various digital logic applications.
ONSEMI 74LCX32MTCX Quad Logic Gate Specifications:
- Supply Voltage: 2.0V to 3.6V (data retention 1.5V to 3.6V)
- Input Voltage: 0V to 5.5V
- Output Voltage: 0V to Vcc
- Maximum Propagation Delay: 6.2 ns
- Output Drive: 24mA
- ESD Performance: >2000V Human Body Model, >150V Machine Model
- Temperature Range: -40°C to +85°C
- Package Types: SOIC, SOP, TSSOP, DQFN
- Physical Dimensions: Various packages with compact footprints, leadless options available
- Maximum Ratings: Vcc -0.5V to +7.0V, Input/Output current up to ±50mA
- Designed for high-speed digital logic interfacing and CMOS logic levels

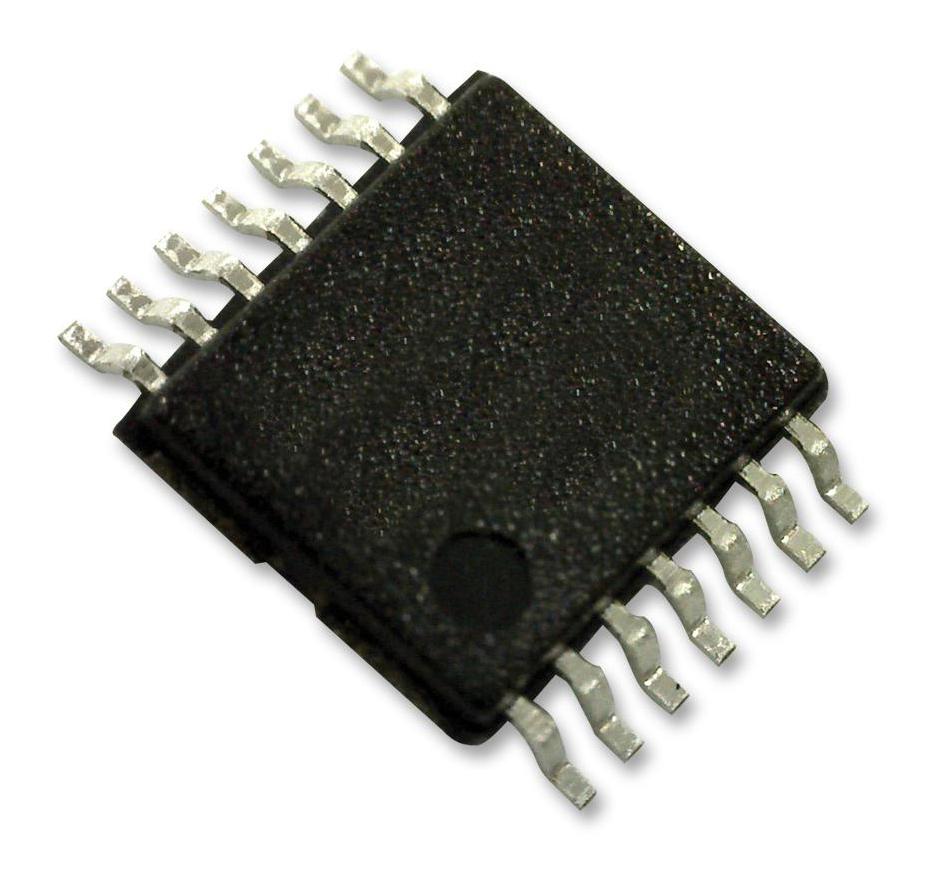

Buy the Fairchild Series LCX 32 Logic Gate: 74LCX32MTCX
Experience the reliability and high-speed performance of the Fairchild Quad Logic Gate. Perfect for digital systems requiring low voltage, fast switching, and robust noise immunity. Available in leadless DQFN, TSSOP, SOIC, and SOP packages, the 74LCX32 provides 2-input OR gates with 5V tolerant inputs, supporting interface compatibility between 3V and 5V platforms. Its advanced CMOS technology ensures low power dissipation, high drive current, and excellent latch-up immunity. Purchase online now to integrate this compact, high-performance logic device into your electronic designs.
Get Fairchild 74LCX32MTCX today—built for precision and long-lasting durability in digital logic applications.
Frequently Asked Questions
Where can I buy ONSEMI 74LCX32MTCX?
You can click on the BUY or RFQ button to purchase 74LCX32MTCX from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 74LCX32MTCX?
You can download the 74LCX32MTCX datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 74LCX32MTCX?
ONSEMI
