ONSEMI 74LVT162244MTD 16-bit Buffer Line Driver
The 74LVT162244MTD is a low-voltage, 16-bit non-inverting buffer and line driver featuring 3-state outputs and integrated series resistors in the output lines. Designed for use as memory and address drivers, clock drivers, or bus transceivers, it allows for nibble (4-bit) control with shared 3-state enable inputs for 8-bit or 16-bit operation. The device's output stages have consistent 25Ω series resistance in both high and low states, which helps reduce line noise in applications such as memory address driving, clock signaling, and bus communication. It includes bus-hold inputs to eliminate the need for external pull-up resistors on unused inputs. Built with advanced BiCMOS technology, it provides high-speed operation comparable to 5V TTL logic, while supporting low-voltage VCC operation and maintaining low power dissipation. The device is compatible with 5V systems, allows for live insertion and extraction, and ensures glitch-free power-up and shutdown behavior, making it suitable for industrial, clock, timing, and signal processing applications.
ONSEMI 74LVT162244MTD 16-bit Buffer Line Driver Specifications:
- Supply Voltage Range: 2.7V to 3.6V
- Output Voltage Levels: Compatible with 5V TTL logic
- Output Resistance: 25Ω in high and low states
- Number of Channels: 16 non-inverting buffers
- Control Method: Nibble (4-bit) controlled with shared OE inputs
- Series Resistors: Embedded in output lines to reduce line noise
- Bus-Hold Inputs: Yes, eliminate need for external pull-up resistors
- Operating Temperature: -65°C to +150°C
- Power Dissipation: Low, advanced BiCMOS technology
- Physical Packages: FBGA, SSOP, TSSOP packages available
- ESD Protection: >2000V human-body model

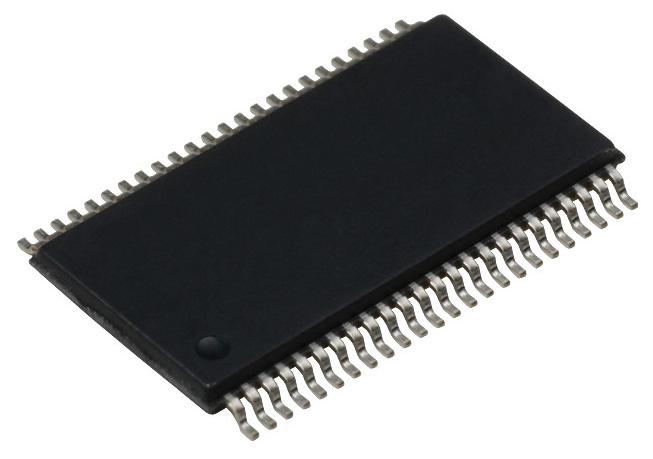

Buy the Buy ON Semiconductor 74LVT162244MTD Part Number 74LVT162244MTD Online
Purchase the ON Semiconductor 74LVT162244MTD online to ensure high-speed, low-voltage operation with integrated series resistors and bus-hold inputs. This 16-bit buffer and line driver is ideal for memory, address, clock, and bus transceiver applications, offering consistent output resistance and glitch-free power-up behavior. Its advanced BiCMOS technology provides TTL compatibility and reliable performance in industrial, timing, and signal processing systems. Easy to insert and extract, this device ensures robust system operation with minimal external components, making it an excellent choice for integrating high-speed data transfer and signal control in your electronics projects.
Buy ON Semiconductor 74LVT162244MTD now and experience unmatched reliability and high-speed low-voltage buffering for your industrial and electronic system needs.
Frequently Asked Questions
Where can I buy ONSEMI 74LVT162244MTD?
You can click on the BUY or RFQ button to purchase 74LVT162244MTD from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 74LVT162244MTD?
You can download the 74LVT162244MTD datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 74LVT162244MTD?
ONSEMI
