ONSEMI CM1213A02SR ESD Protection Array
The CM1213A family offers low-capacitance ESD protection arrays with 1, 2, or 4 channels, ideal for high-speed data ports like USB 2.0, HDMI, and Serial ATA. Designed to withstand up to 8 kV contact discharge per IEC 61000-4-2, these devices feature minimal input capacitance of 0.85 pF and excellent ESD durability for over 1000 strikes per pin. Their embedded Zener diode between Vp and Vy reduces supply rail voltage effects, providing reliable, compact ESD protection for sensitive electronic systems in mobile, automotive, and consumer electronics applications.
ONSEMI CM1213A02SR ESD Protection Array Specifications:
- Channels: 1, 2, or 4 channels
- Protection level: IEC 61000-4-2 Level 4, +8 kV contact discharge
- Input Capacitance: 0.85 pF typical
- Capacitance Matching: 0.02 pF typical
- Maximum ESD strikes per pin: over 1000
- Operating voltage: 3.3 V (Vp - Vn) up to 6.0 V
- Operating temperature: -40°C to +85°C
- Storage temperature: -65°C to +150°C
- Device options: SOT23-3, SOT143-4, SC-74, SC70-6, MSOP-10
- Pb-Free and ROHS Compliant
- Designed for high-speed digital ports like USB 2.0, IEEE 1394, DVI, HDMI, Serial ATA
- Power ratings vary by package, with up to 400 mW for MSOP-10
- Peak clamp voltage: 7 V at 1 A discharge
- Board level protection: over 1000 ESD strikes per pin

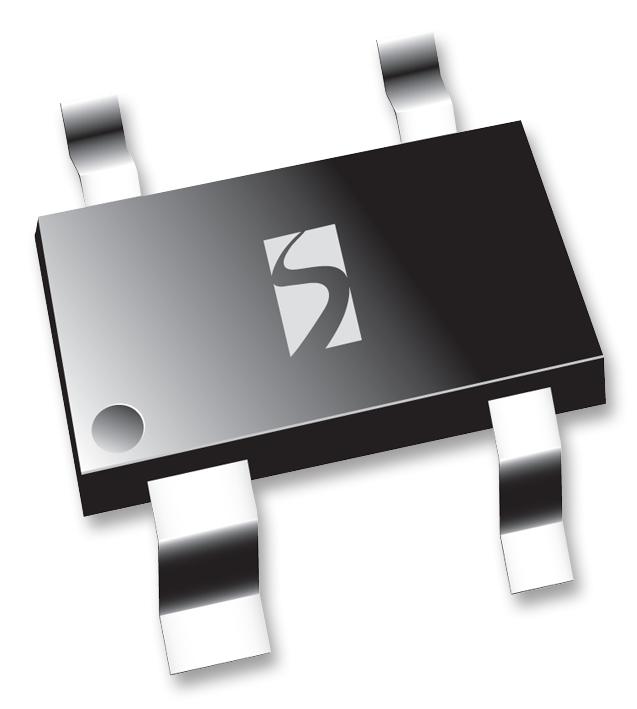

Buy the Buy ON Semiconductor ESD Protection Arrays Part Number CM1213A02SR Online
Order the ON Semiconductor ESD Protection Array CM1213A02SR online now to safeguard your high-speed digital interfaces. These compact devices provide up to 8kV contact discharge protection with minimal input capacitance of 0.85 pF, making them perfect for USB 2.0, HDMI, Serial ATA, and other high-speed ports. With over 1000 ESD strikes per pin and embedded Zener diodes to reduce supply voltage effects, they ensure reliable, low-capacitance ESD protection in automotive, consumer, and telecom applications. Purchase today for fast delivery and enhanced circuit reliability.
Get ON Semiconductor ESD Protection Arrays CM1213A02SR today—designed for minimal capacitance and reliable protection of high-speed data ports in compact packages.
Frequently Asked Questions
Where can I buy ONSEMI CM1213A02SR?
You can click on the BUY or RFQ button to purchase CM1213A02SR from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part CM1213A02SR?
You can download the CM1213A02SR datasheet or visit the ONSEMI website for support.
Who is the manufacturer of CM1213A02SR?
ONSEMI
