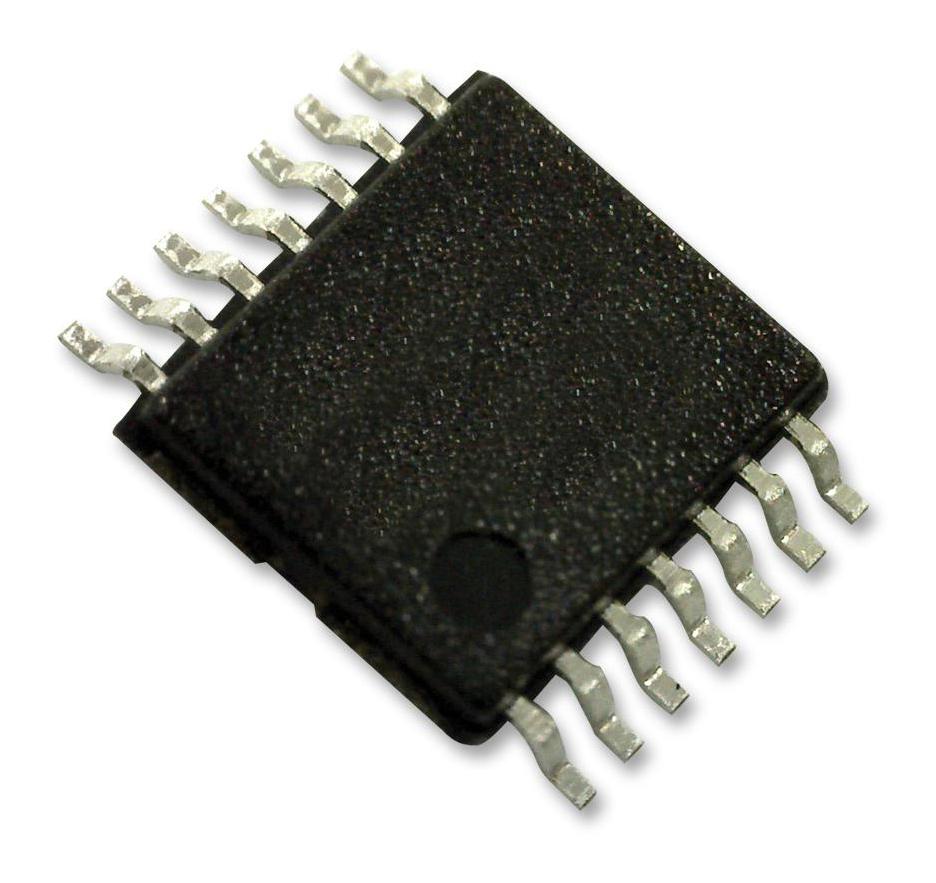

ONSEMI 74LVX08MTCX Quad AND Gate
The low-voltage quad 2-input AND gate integrates four 2-input AND logic gates with input voltage tolerance up to 7 V, ideal for interfacing 5 V systems with 3 V logic. It guarantees minimal switching noise and offers reliable performance in low-power, low-noise applications such as digital circuit interface and logic system design. Featuring robust specifications, it supports operation from -40°C to 85°C, with logic levels and electrical characteristics optimized for modern electronic systems, ensuring consistent performance and durability.
ONSEMI 74LVX08MTCX Quad AND Gate Specifications:
- Supply Voltage: 2.0V to 3.6V
- Input Voltage Range: 0V to 5.5V
- Output Voltage: 0V to Vcc
- Operating Temperature: -40°C to 85°C
- Input Rise and Fall Time: Up to 100 ns
- Input Leakage Current: 50 pA (max)
- Logic Threshold: High at ≥ 2.0 V, Low at ≤ 0.8 V
- Power Dissipation Capacitance: 18 pF
- Vcc Voltage Tolerance: Up to 7 V for inputs
- Pin Count: 14
- Package Types: SOIC 14L, TSSOP 14L
- Lead-Free Spot Welding: Yes
- Maximum Power Dissipation: 180 mW
- Storage Temperature: -65°C to 150°C
Buy the Fairchild Series 74LVX08: Low-Voltage Quad AND Gate - 74LVX08MTCX
Enhance your circuit designs with the reliable and efficient Fairchild Quad AND Gate. Perfect for interfacing 5 V and 3 V logic levels, this device ensures minimal noise, low power consumption, and consistent operation across temperatures. Its robust construction and compatibility with standard packages like SOIC and TSSOP make it ideal for compact electronics, digital systems, and industrial applications. Purchase online today and ensure your systems operate flawlessly with this high-quality logic gate designed for durability and precision.
Get Fairchild 74LVX08MTCX today—built for precision, robust performance, and long-lasting durability in digital logic applications.
Frequently Asked Questions
Where can I buy ONSEMI 74LVX08MTCX?
You can click on the BUY or RFQ button to purchase 74LVX08MTCX from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 74LVX08MTCX?
You can download the 74LVX08MTCX datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 74LVX08MTCX?
ONSEMI
