ONSEMI MC74VHC14DTG High-Speed CMOS Schmitt Trigger Inverter
The MC74VHC14 is a high-speed CMOS Schmitt trigger inverter designed for fast switching applications with low power consumption. It features input hysteresis and a Schmitt trigger function, enabling it to receive slow or noisy signals effectively. The device supports operating voltages from 2.0 V to 5.5 V, making it suitable for interfacing between different logic levels. It provides high noise immunity, balanced propagation delays, and is built with robust ESD protection. Its compact TSSOP-14 package ensures ease of integration into various electronic systems, ideal for line receiver and signal conditioning tasks.
ONSEMI MC74VHC14DTG High-Speed CMOS Schmitt Trigger Inverter Specifications:
- Supply Voltage: 2.0 V to 5.5 V
- Input Threshold Voltage: 2.20 V (typ), 3.85 V (max)
- Hysteresis: 0.30 V to 1.60 V (typ varies with voltage)
- Propagation Delay: 8.3 ns to 16.3 ns depending on conditions
- Output Voltage: 0.4 V (max) at high, 0.4 V (max) at low
- Input Voltage: 0 V to 5.5 V
- Maximum DC Supply Current: 20 μA
- Operate Temperature Range: -55°C to 125°C
- ESD Protection: >2000 V (HBM)
- Power Dissipation: 200 mW (SOIC), 180 mW (TSSOP)
- Package: SOIC-14, TSSOP-14

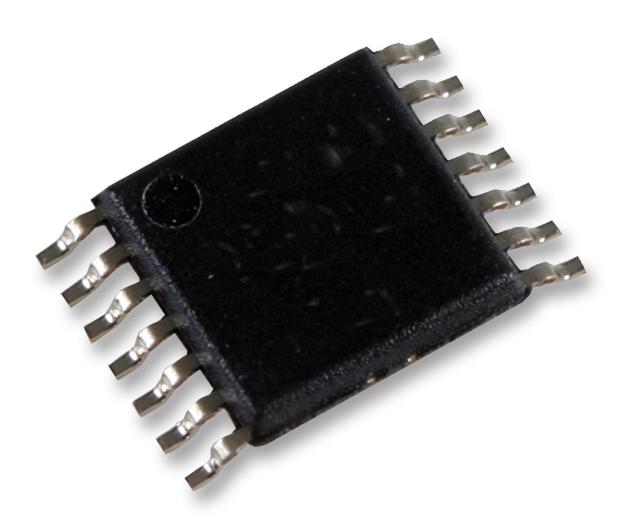

Buy the Buy Semiconductor Components Industries MC74VHC14 Part Number DTG Online
Purchase the high-speed CMOS Schmitt trigger inverter today for reliable signal conditioning and noise immunity in your digital circuits. This device supports operating voltages from 2.0 V to 5.5 V, ensuring compatibility with a wide range of systems. Its input hysteresis and balanced propagation delays improve performance for slow or noisy signals. Compact in TSSOP-14 package, it guarantees easy integration, low power consumption, and robust ESD protection, making it ideal for line receiver applications and high-speed logic interfacing in modern electronics.
Buy Semiconductor Components Industries MC74VHC14 in TSSOP-14 package now and experience unmatched reliability and performance designed for fast, noise-immune signal processing.
