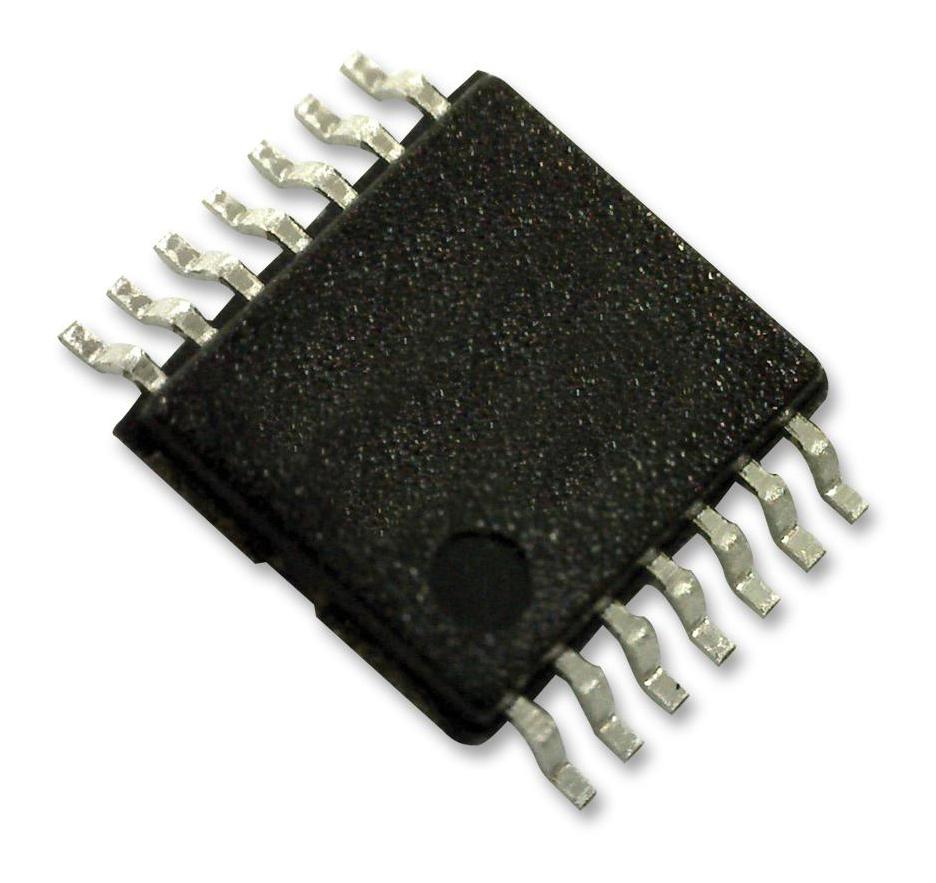

ONSEMI 74LVX132MTCX Quad 2-Input NAND Schmitt Trigger
The ONSEMI 74LVX132MTCX is a low-voltage Quad 2-Input NAND Schmitt Trigger gate designed for use in 3.3V applications. It offers input voltage level translation from 5V to 3V, allowing for compatibility with a wider range of systems. The Schmitt trigger action provides hysteresis, transforming slowly changing input signals into sharply defined, jitter-free output signals, which improves noise margins. This makes it suitable for applications requiring reliable signal processing and reduced noise sensitivity.
ONSEMI 74LVX132MTCX Quad 2-Input NAND Schmitt Trigger Specifications:
- Input Voltage Level Translation: 5V to 3V
- Supply Voltage (VCC): 2.0V to 3.6V
- Input Leakage Current: ±1.0 µA (max)
- Quiescent Supply Current: ±50mA (max)
- Positive Threshold Voltage (Vt+): 2.2V
- Negative Threshold Voltage (Vt–): 0.9V
- Hysteresis: 0.3V to 1.2V
- High Level Output Voltage (VOH): 2.9V (min)
- Low Level Output Voltage (VOL): 0.44V (max)
- Input Rise and Fall Time: 0ns/V to 100ns/V
- Operating Temperature: –40°C to +85°C
- Storage Temperature: –65°C to +150°C
- Power Dissipation: 180mW
Buy the 74LVX132MTCX ONSEMI Quad 2-Input NAND Schmitt Trigger | myMectronic
Purchase the ONSEMI 74LVX132MTCX securely and reliably for your electronic component needs.
Buy Now
Frequently Asked Questions
Where can I buy ONSEMI 74LVX132MTCX?
You can click on the BUY or RFQ button to purchase 74LVX132MTCX from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 74LVX132MTCX?
You can download the 74LVX132MTCX datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 74LVX132MTCX?
ONSEMI
