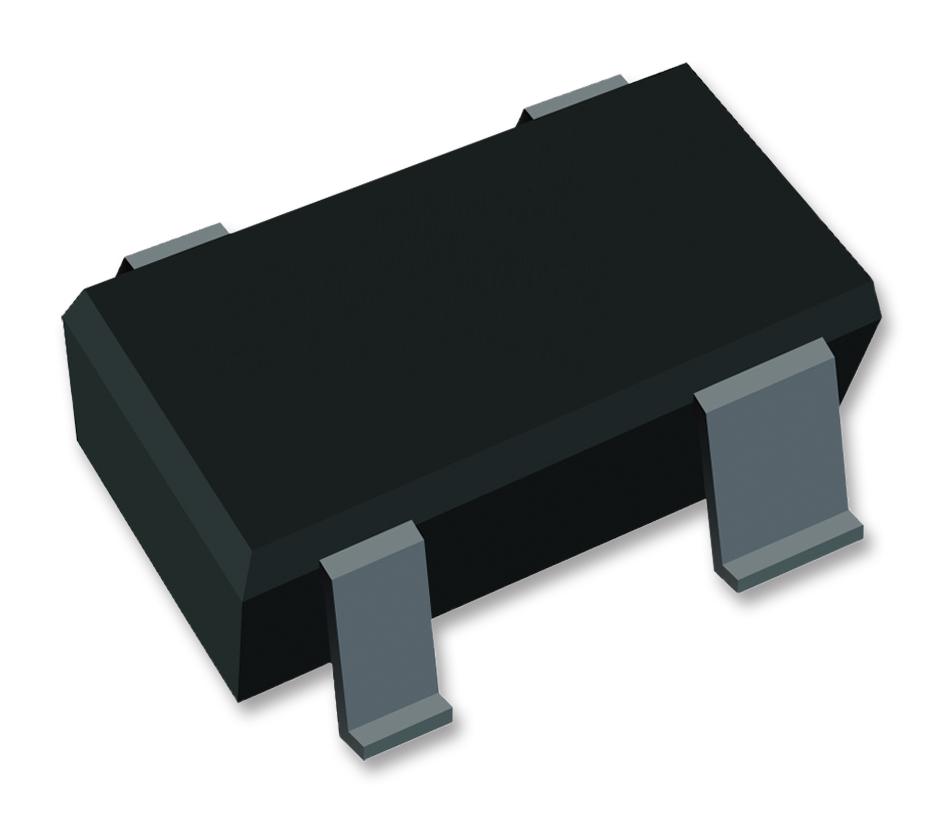

ONSEMI NCP563SQ33T1G Voltage Regulator
This low dropout linear voltage regulator series delivers ultra-low quiescent current of 2.5 microamperes, making it ideal for handheld and portable battery-powered devices. Designed for efficiency, it features an error amplifier, a PMOS transistor, and requires minimal external components, such as ceramic capacitors of at least 0.1 µF. The series supports multiple fixed output voltages from 1.5 V to 5.0 V and includes an enable pin for power control. This compact, thermally protected device is suitable for consumer, automotive, and industrial applications demanding reliable and efficient voltage regulation.
ONSEMI NCP563SQ33T1G Voltage Regulator Specifications:
- Output Voltage: 1.5V to 5.0V in 100mV steps
- Quiescent Current: 2.5 µA typical
- Dropout Voltage: 200-800 mV depending on voltage
- Input Voltage Range: Up to 6.0V
- Maximum Power Dissipation: 250 mW at 25°C
- Operating Temperature: -40°C to 85°C
- Thermal Resistance, Junction-to-Ambient: 400 °C/W
- Package: SC82-AB surface mount
- ESD Protection: Human Body Model 2000V, Machine Model 200V
- Compliance: RoHS, Pb-Free, Halogen Free, BFR Free
- Features: Enable pin for ON/OFF control, requires low ESR ceramic capacitors
- Applications: Battery-powered instruments, handheld devices, cameras, automotive electronics
Buy the ON Semiconductor NCP563 U+2013 Reliable Voltage Regulator for Industrial Applications
Purchase the ON Semiconductor NCP563 voltage regulator online today and ensure your electronic designs benefit from ultra-low quiescent current, stable output, and reliable power management. Perfect for battery-powered and portable applications, this compact device offers multiple fixed voltages, high efficiency, and built-in thermal protection. Its compatibility with low-cost ceramic capacitors simplifies your design, while the enable pin provides convenient power control. Get rapid delivery and secure your supply of this essential component to enhance device performance and longevity.
Order your ON Semiconductor Series NCP563 voltage regulator today and give your electronic projects the dependable efficiency they need to perform flawlessly.
Frequently Asked Questions
Where can I buy ONSEMI NCP563SQ33T1G?
You can click on the BUY or RFQ button to purchase NCP563SQ33T1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCP563SQ33T1G?
You can download the NCP563SQ33T1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCP563SQ33T1G?
ONSEMI
