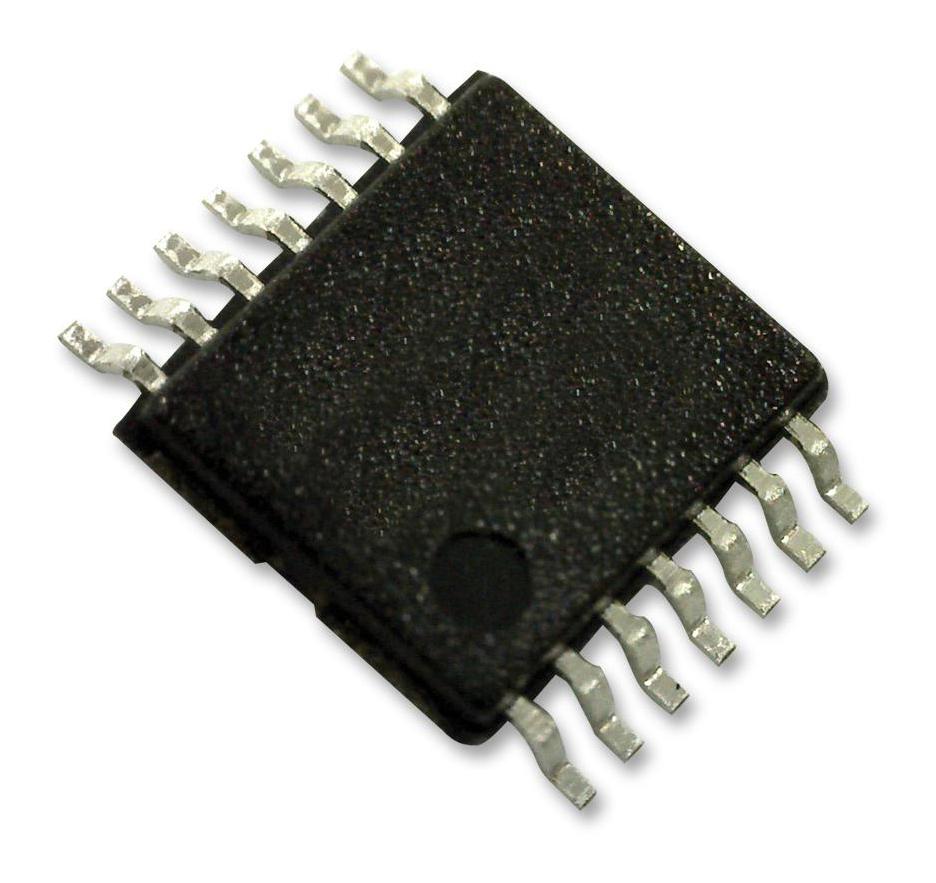

ONSEMI 74VHC125MTCX Quad Buffer with 3-State Outputs
The ONSEMI 74VHC125MTCX is a high-speed CMOS quad buffer with 3-state outputs, designed for reliable digital logic applications. Fabricated with silicon gate CMOS technology, it delivers performance comparable to bipolar Schottky TTL while maintaining low power dissipation. It features input protection allowing operation with mismatched supply and input voltages, making it suitable for interfacing 5V to 3V systems or battery backup systems. This versatile buffer is pin and function compatible with the 74HC125, ensuring easy integration into existing designs.
ONSEMI 74VHC125MTCX Quad Buffer with 3-State Outputs Specifications:
- High Speed: tPD = 3.8ns (Typ.) at VCC = 5V
- Lower Power Dissipation: ICC = 4 µA (Max.) at TA = 25°C
- High Noise Immunity: VNIH = VNIL = 28% VCC (Min.)
- Input Protection: 0V to 7V can be applied to input pins
- Pin and Function Compatibility: Compatible with 74HC125
- Supply Voltage: 2.0V to +5.5V
- Input Voltage: 0V to +5.5V
- Output Voltage: 0V to VCC
- Operating Temperature: –40°C to +85°C
- Input Capacitance: 4-10pF
- Output Capacitance: 6pF
- Power Dissipation Capacitance: 14pF
Buy the 74VHC125MTCX ONSEMI Quad Buffer with 3-State Outputs | myMectronic
Purchase the ONSEMI 74VHC125MTCX securely and efficiently for your electronic component needs.
Buy Now
Frequently Asked Questions
Where can I buy ONSEMI 74VHC125MTCX?
You can click on the BUY or RFQ button to purchase 74VHC125MTCX from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 74VHC125MTCX?
You can download the 74VHC125MTCX datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 74VHC125MTCX?
ONSEMI
