ONSEMI NUP4060AXV6T1G Transient Voltage Suppressor Array
The NUP4060AXV6 is a 4-line transient voltage suppressor array designed for protecting sensitive electronic equipment against over-transient voltages and ESD events. Encased in a compact SOT-563 package, it features low capacitance (< 7 pF @ 3 V) for high-speed data lines. The device protects up to four independent lines with a common cathode, offering ESD ratings of IEC61000-4-2 Level 4 contact (8 kV) and air (15 kV). It operates at a maximum voltage of 16 V on Vcc and provides a robust solution for USB, notebook, and portables, ensuring reliable transient suppression across diverse applications.
ONSEMI NUP4060AXV6T1G Transient Voltage Suppressor Array Specifications:
- Protects 4 lines in a single SOT-563 package
- ESD Rating: IEC61000-4-2 Level 4 contact (8 kV), air (15 kV)
- Vcc Protection Voltage: 16 V
- D1, D2, D3 Pins Protection Voltage: 6.8 V
- Capacitance: Less than 7 pF @ 3 V
- Peak Power Dissipation: 200 W
- Peak Power Dissipation (D1, D2, D3): 20 W
- Operating Junction Temperature Range: -40°C to 125°C
- Storage Temperature Range: -55°C to 150°C
- Lead Solder Temperature: Max 260°C (10 sec)

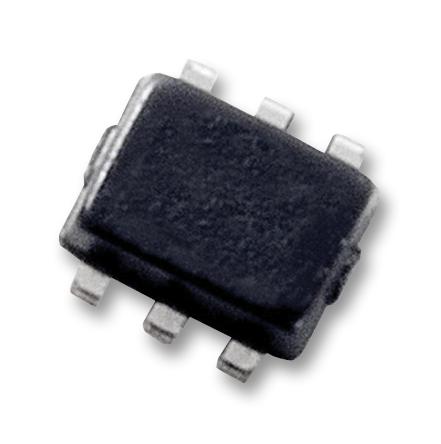

Buy the Buy ON Semiconductor NUP4060AXV6 Part Number NUP4060AXV6 Online
Purchase the ON Semiconductor NUP4060AXV6 online today to ensure your electronic devices are protected against transient voltage spikes and ESD events. This robust 4-line suppressor offers high ESD ratings up to 15 kV air and 8 kV contact, with low capacitance for high-speed data lines. Its compact SOT-563 package makes it ideal for USB interfaces, portable devices, and sensitive equipment. Reliable and easy to integrate, the NUP4060AXV6 safeguards your electronics against over-voltage conditions, ensuring durability and consistent performance across applications.
Get ON Semiconductor NUP4060AXV6 today—designed for reliable transient voltage suppression in compact form factors for high-speed electronics.
Frequently Asked Questions
Where can I buy ONSEMI NUP4060AXV6T1G?
You can click on the BUY or RFQ button to purchase NUP4060AXV6T1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NUP4060AXV6T1G?
You can download the NUP4060AXV6T1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NUP4060AXV6T1G?
ONSEMI
