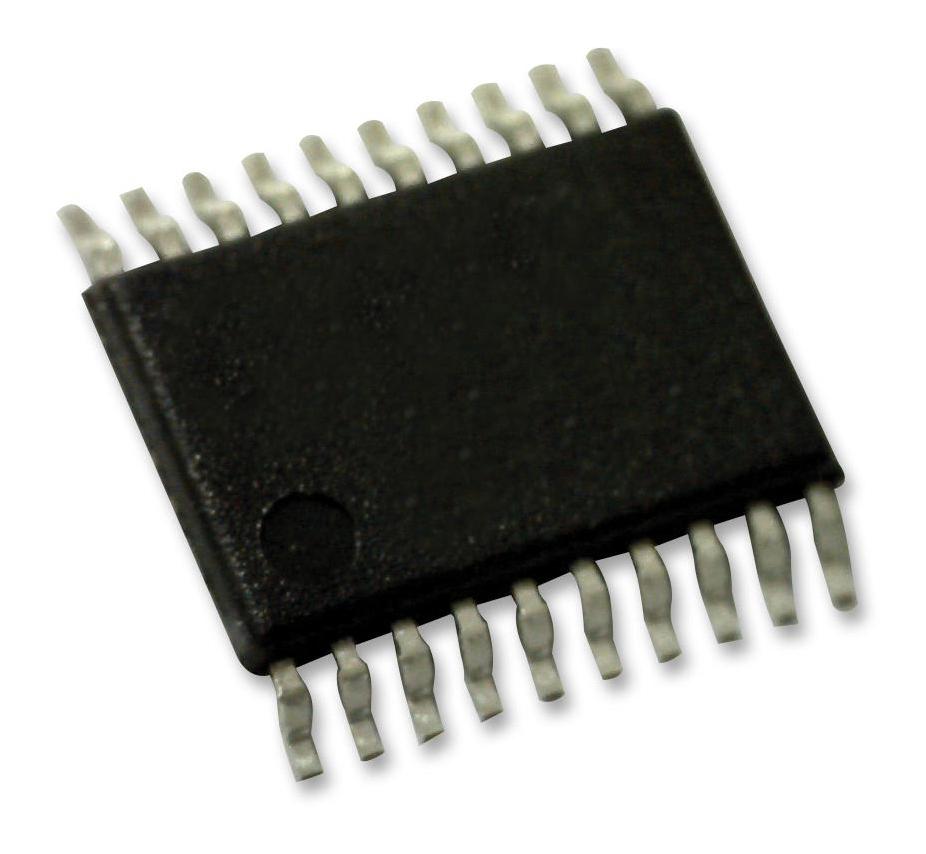

ONSEMI 74VHCT244AMTCX Octal Buffer/Line Driver
The ONSEMI 74VHCT244AMTCX is an advanced high-speed CMOS octal bus transceiver designed for applications requiring high-speed operation with low power dissipation. It features 3-STATE output enables and is pin and function compatible with the 74HCT244. Protection circuits allow operation with mismatched supply and input/output voltages, enabling interface between 5V and 3V systems. This versatile device is ideal for 3-STATE memory address drivers, clock drivers, and bus-oriented transmitter/receivers in a wide range of industrial and commercial applications.
ONSEMI 74VHCT244AMTCX Octal Buffer/Line Driver Specifications:
- High Speed: tPD = 5.9ns (Typ.) at VCC = 5V
- Power Dissipation: ICC = 4µA (Max.) @ TA = 25°C
- Compatibility: Pin and function compatible with 74HCT244
- Supply Voltage: VCC = 4.5V to +5.5V
- Input Voltage: V_IN = 0V to +5.5V
- Output Voltage: V_OUT = 0V to VCC
- Operating Temperature: T_OPR = –40°C to +85°C
- Input Leakage Current: I_IN = ±1.0µA
- Quiescent Supply Current: I_CC = ±40.0µA
- Output Leakage Current: I_OFF = ±5.0µA
Buy the 74VHCT244AMTCX ONSEMI Octal Buffer/Line Driver | myMectronic
Purchase the ONSEMI 74VHCT244AMTCX securely and reliably for your industrial automation and electronics projects.
Buy Now
Frequently Asked Questions
Where can I buy ONSEMI 74VHCT244AMTCX?
You can click on the BUY or RFQ button to purchase 74VHCT244AMTCX from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 74VHCT244AMTCX?
You can download the 74VHCT244AMTCX datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 74VHCT244AMTCX?
ONSEMI
