ONSEMI CNY17F3SR2VM Phototransistor Optocoupler
The CNY17F3SR2VM is a 6-pin phototransistor optocoupler featuring a gallium arsenide infrared emitting diode. It offers very low coupling capacitance and no chip-to-pin 6 base connection, resulting in minimal noise susceptibility. Suitable for digital logic inputs, microprocessor interfaces, and industrial control applications, it provides a closely matched current transfer ratio (CTR), a high collector-emitter breakdown voltage of 70V minimum, and a maximum insulation voltage of 850V. With the ability to withstand over-voltage up to 6000V, it is ideal for power management, sensing, instrumentation, and industrial control systems.
ONSEMI CNY17F3SR2VM Phototransistor Optocoupler Specifications:
- Package: 6-Pin DIP
- High BVCEO: 70 V minimum
- Insulation Voltage: 850 V peak
- Coupling Capacitance: Very low
- Current Transfer Ratio (CTR): Closely matched
- Maximum Over-Voltage: 6000 Vpeak
- Isolation Resistance: >10^9 Ω at 500 VDC
- Storage Temperature: -40°C to +125°C
- Operating Temperature: -40°C to +100°C
- Lead Solder Temperature: 260°C for 10 seconds
- Collector-Emitter Voltage: 70 V
- Input Forward Voltage: 1.15 V (typ)
- Collector Current: 50 mA

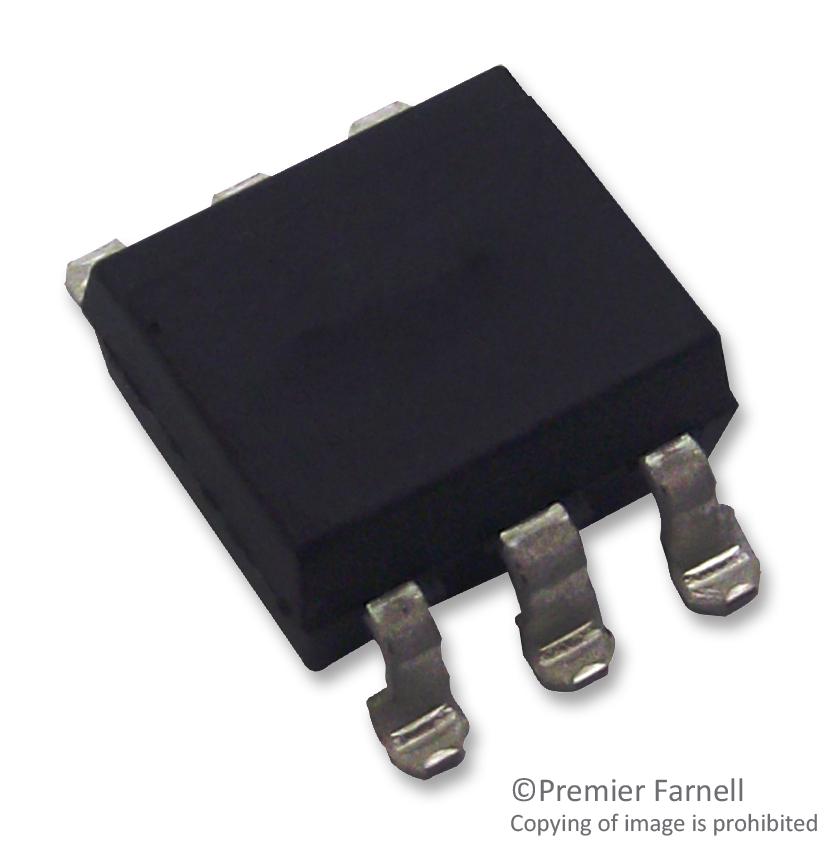

Buy the Buy ON Semiconductor CNY17F3SR2VM Part Number CNY17F3SR2VM Online
Purchase the ON Semiconductor CNY17F3SR2VM today online to ensure high-quality, reliable isolation for your industrial, sensing, or digital logic projects. This 6-pin optocoupler provides excellent insulation voltage of 850V, a high breakdown voltage of 70V, and a closely matched current transfer ratio, making it suitable for power management, microprocessor interfaces, and industrial controls. Its low noise susceptibility and high insulation resistance assure safety and durability in complex systems. Order now for fast delivery and maintain optimal system performance with this robust optocoupler.
Get ON Semiconductor CNY17F3SR2VM today—built for high insulation, low noise, and reliable industrial control performance.
Frequently Asked Questions
Where can I buy ONSEMI CNY17F3SR2VM?
You can click on the BUY or RFQ button to purchase CNY17F3SR2VM from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part CNY17F3SR2VM?
You can download the CNY17F3SR2VM datasheet or visit the ONSEMI website for support.
Who is the manufacturer of CNY17F3SR2VM?
ONSEMI
