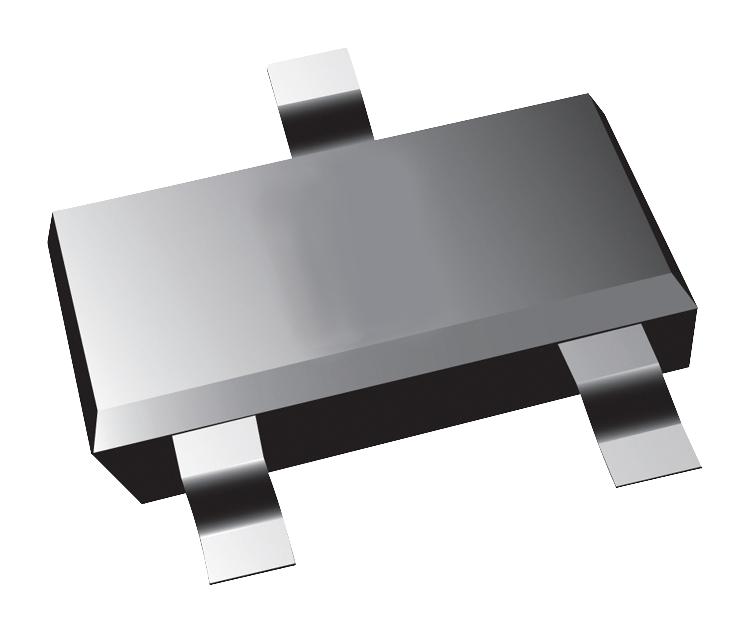

ONSEMI BAW56TT1G Dual Switching Diode
The BAW56TT1G is a dual switching diode designed for automotive and general-purpose applications, offering a reverse voltage of 70V and peak forward surge current of 500mA. It features Pb-Free and RoHS compliance, with thermal characteristics suitable for reliable operation. Encased in a compact SC-75/SOT-416 package, it ensures efficient thermal dissipation and electrical performance. Ideal for circuit protection, switching, and rectification tasks, this diode combines robust construction with low forward voltage, making it suitable for various electronic systems requiring reliable and efficient switching capabilities.
ONSEMI BAW56TT1G Dual Switching Diode Specifications:
- Reverse Voltage: 70 V
- Forward Current: 200 mA
- Peak Forward Surge Current: 500 mA
- Total Device Dissipation, Ta = 25°C: 225 mW (FR-4 board), 360 mW (alternative mounting)
- Thermal Resistance, Junction-to-Ambient: 55.5 °C/W (Note 1), 34.5 °C/W (Note 2)
- Junction Temperature Range: -55°C to +150°C
- Package: SC-75/SOT-416
- Maximum Reverse Leakage Current at 25V, 150°C: 50 μA
- Reverse Breakdown Voltage: 70 V
- Diode Capacitance at 0V, 1 MHz: 2.0 pF
- Forward Voltage at 1mA: 0.715 V
- Storage Temperature Range: -55°C to +150°C
