ONSEMI CAT25020VIGT3 Serial CMOS EEPROM
The CAT25020VIGT3 is a 2-Kb Serial CMOS EEPROM device supporting SPI protocol, internally organized as 256x8 bits. It features a 16-byte page write buffer, self-timed write cycle, and both hardware/software write protection, including partial/full array protection. Operating between 1.8V to 5.5V and supporting 20 MHz SPI mode, it is designed for industrial and extended temperature ranges. Its low power CMOS technology ensures durability for numerous program/erase cycles with a 100-year data retention, making it ideal for embedded systems requiring reliable non-volatile memory.
ONSEMI CAT25020VIGT3 Serial CMOS EEPROM Specifications:
- Memory Size: 2-Kb (256x8 bits)
- Interface: SPI compatible, Mode (0,0) & (1,1)
- Supply Voltage Range: 1.8 V to 5.5 V
- Maximum Clock Frequency: 20 MHz
- Page Buffer: 16 bytes
- Endurance: 1,000,000 program/erase cycles
- Data Retention: 100 years
- Temperature Range: -45°C to +130°C
- Protection: Hardware and software write protection including block protection
- Package Types: UDFN-8, SOIC-8, PDIP-8, TSSOP-8
- Compliance: Pb-Free, Halogen Free, RoHS
- Write Cycle Time: 5 ms
- Current Consumption: 2 mA during read/write at 5V/10 MHz
- Pin Functions: SI, SO, SCK, CS, HOLD, WP, Vss, Vcc

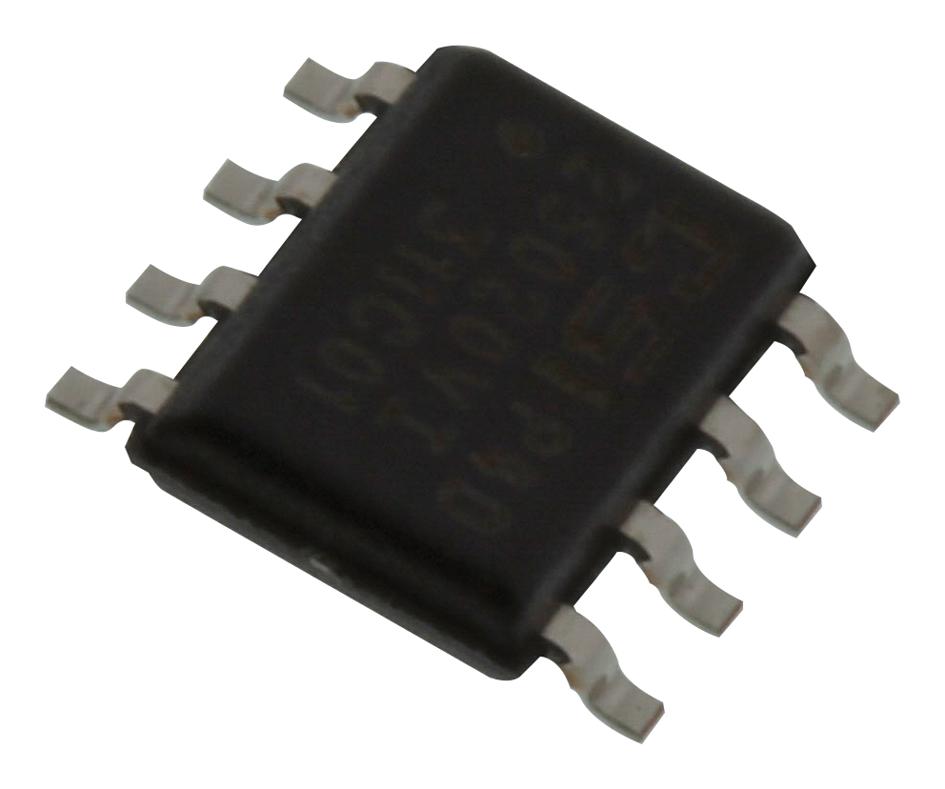

Buy the ON Semiconductor Series CAT25020 EEPROM: CAT25020VIGT3
Experience reliable data storage with the ON Semiconductor CAT25020VIGT3 EEPROM. Supporting SPI protocol at 20 MHz and a wide voltage range from 1.8V to 5.5V, it features a 16-byte page buffer and robust protection features. Designed for industrial applications, it endures over a million write cycles and guarantees 100 years of data retention. Its compact UDFN, SOIC, PDIP, and TSSOP packages make it suitable for space-constrained systems, ensuring high performance and longevity in mission-critical environments.
Get ON Semiconductor CAT25020VIGT3 today—built for high durability with 1 million program/erase cycles and extended temperature support for reliable embedded memory.
Frequently Asked Questions
Where can I buy ONSEMI CAT25020VIGT3?
You can click on the BUY or RFQ button to purchase CAT25020VIGT3 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part CAT25020VIGT3?
You can download the CAT25020VIGT3 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of CAT25020VIGT3?
ONSEMI
