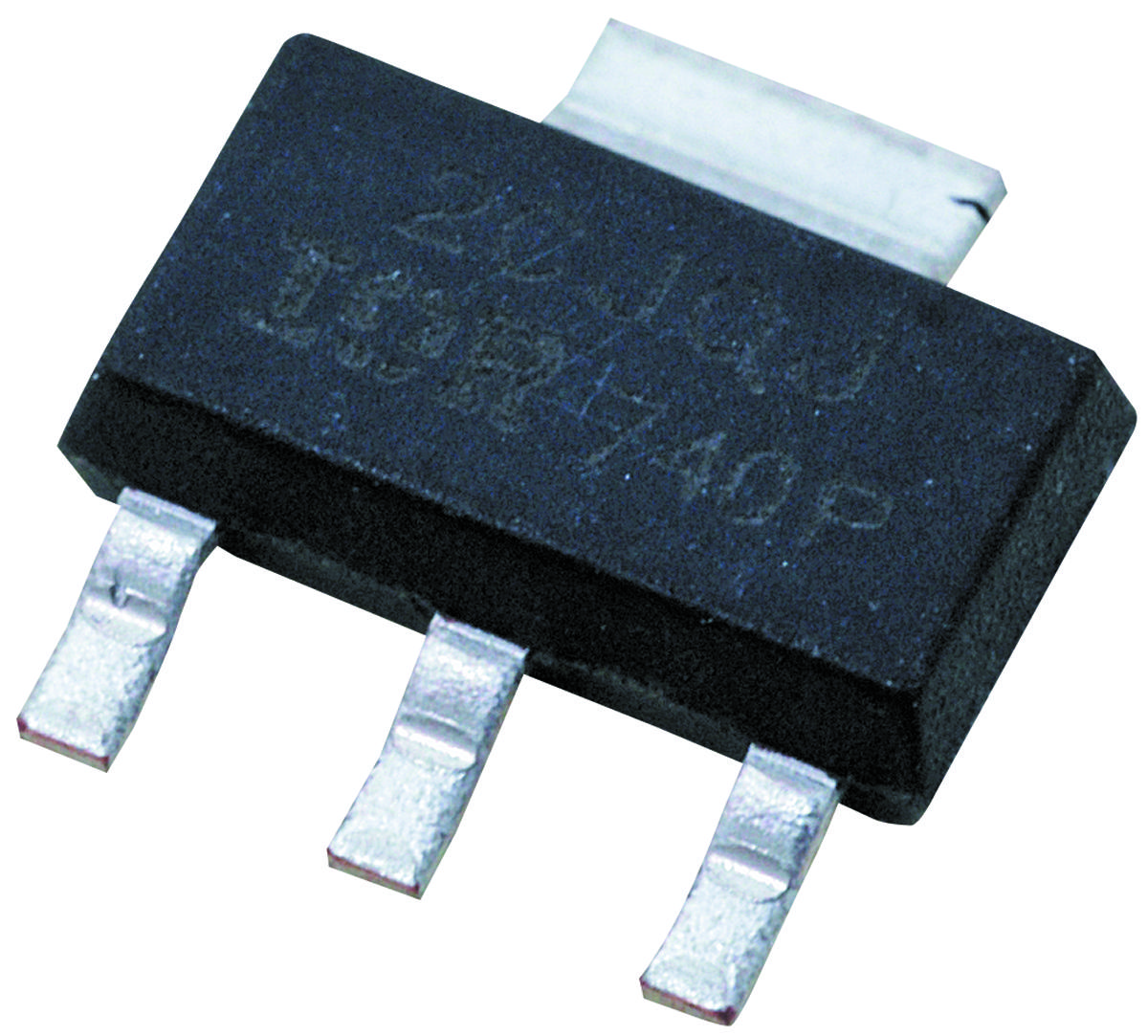

ONSEMI BCP68T1G Medium Power Transistor
The BCP68T1G is an NPN bipolar silicon epitaxial transistor designed for low voltage and high current applications. It features a package optimized for medium power surface-mount applications, enhancing thermal conduction and enabling easy visual inspection of solder joints. The formed leads help absorb thermal stress during soldering, preventing damage to the die. This device can be soldered using wave or reflow methods. It is AEC-Q101 qualified and PPAP capable. The PNP complementary device is the BCP69T1. Suitable for industrial, power management, and automotive uses, ensuring reliable performance.
ONSEMI BCP68T1G Medium Power Transistor Specifications:
- Collector-Emitter Voltage: 20 Vdc
- Collector-Base Voltage: 25 Vdc
- Emitter-Base Voltage: 5.0 Vac
- Collector Current: 1.0 Adc, peak 3.0 Adc
- Base Current: 0.4 Ade, peak 0.4 Ade
- Total Power Dissipation: 1.5 W at 25°C, derate 12 mW/°C
- Operating Temperature Range: -65°C to 150°C
- Thermal Resistance, Junction-to-Ambient: 833 °C/W
- Lead Temperature for Soldering: 260°C for 10 seconds
- Package: SOT-223, medium power surface-mount
- Mechanical Dimensions: length 0.83 inch, width 0.45 inch, height 0.07 inch
- RoHS, Halogen Free, Pb-Free, PPAP Capable, AEC-Q101 qualified
Buy the Buy ON Semiconductor BCP68T1G Part Number BCP68T1G Online
Get the ON Semiconductor BCP68T1G NPN silicon transistor today for your low voltage, high current, and medium power surface-mount applications. Designed with thermal management and stress absorption features, this AEC-Q101 qualified device ensures durability and reliable operation in industrial, automotive, and power management systems. Available now for fast delivery, this Pb-Free, ROHS compliant transistor offers easy soldering with wave or reflow methods. Improve your project’s efficiency and dependability when you buy this robust transistor online today, ensuring quality and performance in every application.
Order your ON Semiconductor BCP68T1G transistor today and enhance your power management projects with reliable high current performance.
Frequently Asked Questions
Where can I buy ONSEMI BCP68T1G?
You can click on the BUY or RFQ button to purchase BCP68T1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part BCP68T1G?
You can download the BCP68T1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of BCP68T1G?
ONSEMI
