ONSEMI NZL5V6AXV3T1G ESD Protection Diode
The NZL5V6AXV3T1G is a dual common anode ESD protection diode designed for voltage-sensitive and ESD-sensitive equipment such as computers, communication systems, printers, and medical devices. It features a compact SC-89 package, high ESD rating exceeding 16 kV, and meets IEC61000-4—2 Level 4 standards. The device offers low leakage current below 5.0 microamps, robust mechanical construction with UL V-0 epoxy, and is Pb-Free. Ideal for protecting dual lines in PCB designs with minimal space usage while ensuring reliable surge protection.
ONSEMI NZL5V6AXV3T1G ESD Protection Diode Specifications:
- Package: SC-89, 3-Lead, void-free, transfer-molded thermosetting plastic epoxy, UL 94V-0 compliant
- Lead Finish: 100% Matte Sn (Tin), mounting position any
- Maximum Total Power Dissipation: 240 mW on FR-5 board at 25°C, derating 1.9 mW/°C
- Junction to Ambient Thermal Resistance: 525°C/W
- Storage and Operating Temperature Range: -55°C to +150°C
- Maximum Lead Solder Temperature (10 sec): 260°C
- ESD Rating: Class N (exceeding 16 kV Human Body Model), meets IEC61000-4-2 Level 4
- Maximum Reverse Voltage (Vawm): 5.0V (NZL5V6AXV3T1G)
- Breakdown Voltage (Ver): 5.32V typical, 5.88V maximum
- Leakage Current: Less than 5.0 uA at Vawm
- Capacitance: Approximately 250 pF at 0V bias, decreases with voltage
- Reflow Temperature: Max 260°C, MSL Level 1
- Dimensions: Based on SC-89 package, length approx. 3.7 mm, width 2.4 mm, height 1.2 mm

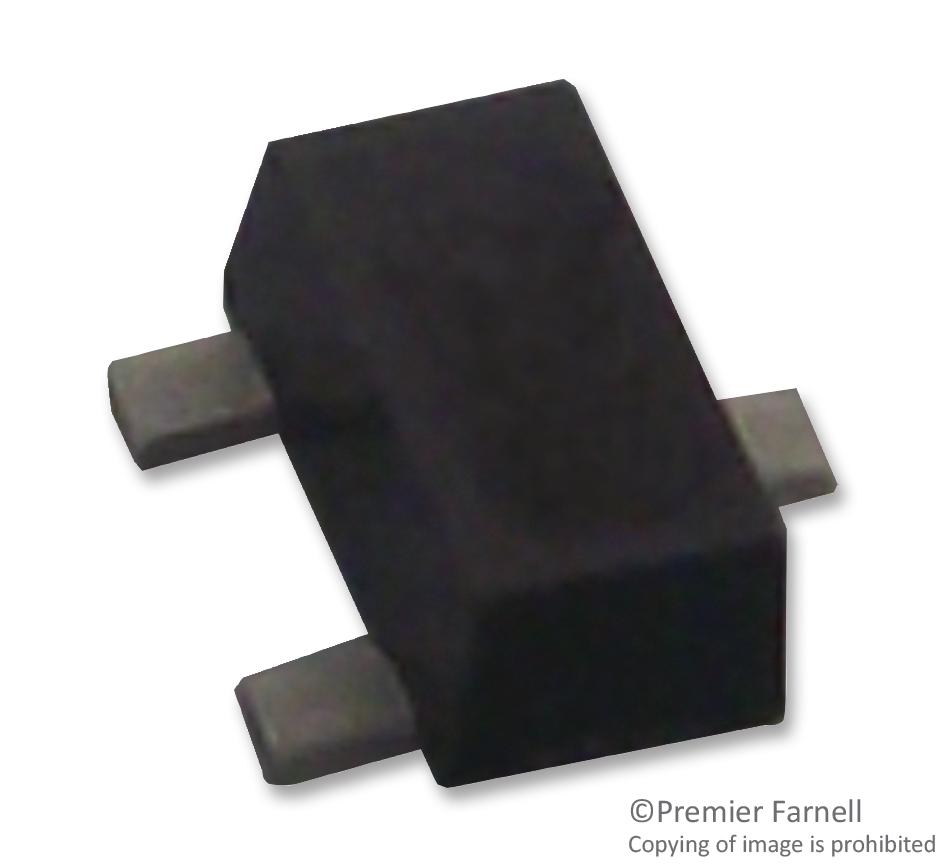

Buy the Buy ON Semiconductor NZL5V6AXV3T1G Part Number NZL5V6AXV3T1G Online
Purchase the ON Semiconductor NZL5V6AXV3T1G online today to safeguard your electronic devices from electrostatic discharge. Its high ESD rating exceeding 16 kV and low leakage current make it an excellent choice for protecting sensitive equipment like computers, printers, and communication systems. The compact SC-89 package allows for efficient PCB design, especially in space-constrained environments. With a robust build, UL compliant epoxy, and Pb-Free construction, this diode guarantees durability and high performance in various industrial and consumer electronics applications.
Buy ON Semiconductor NZL5V6AXV3T1G now and ensure reliable ESD protection for sensitive electronic circuits.
