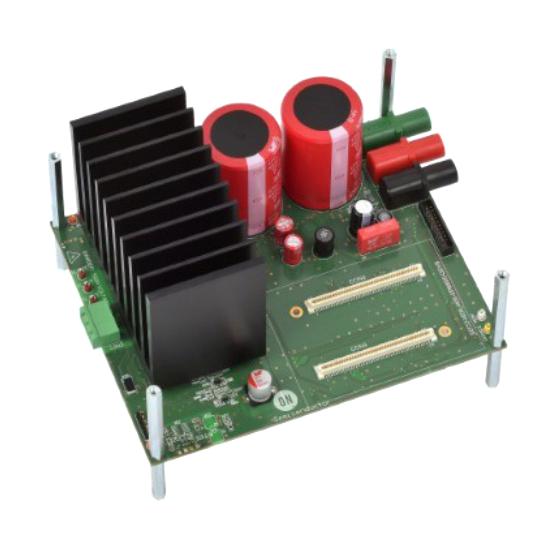

ONSEMI SECOMDK4KW65SPM31GEVK Three-Phase Motor Control Board
The SECO-MDK-4KW-65SP M31-GEVB is a development board designed for three-phase motor drives, featuring an NFAM5065L4B Intelligent Power Module rated at 650 V and 50 A. It supports various motor technologies like AC induction, PMSM, and BLDC, with a power capacity of over 1 kW, capable of short-term 4 kW output. With FPGA control based on Xilinx Zynq-7000 SoC, it provides high-end control options, graphical interface, and multiple protection features, making it ideal for industrial automation and motor control applications.
ONSEMI SECOMDK4KW65SPM31GEVK Three-Phase Motor Control Board Specifications:
- Power Module: NFAM5065L4B 650 V/50 A
- Input Voltage: 400 Vdc, supporting up to 410 V
- Power Capacity: Continuous >1 kW, Peak 4 kW (short-term)
- Controller: Xilinx Zynq-7000 SoC, FPGA & dual ARM Cortex-A9 processors
- Protection: Overcurrent, fault detection, thermal sensing
- Current Measurement: 3 x NCS20166 operational amplifiers with shunt resistors
- Voltage Measurement: Resistive voltage divider for three-phase and DC link
- EEPROM: 512 kB (CAT24C512)
- Operating Temp: Laboratory conditions, designed for testing
- Connectors: Encoder, power input/output, control interfaces
- Supported Motors: AC induction, PMSM, BLDC, Switched Reluctance
- Control: Open-loop/FOC via graphical user interface
- Power Supply: Non-isolated buck converters (15 V, 5 V, 3.3 V)
Buy the SECO Series Motor Control Board: SECOMDK4KW65SPM31
Order the SECO Series Motor Control Board now for seamless integration in industrial automation, testing, and motor development projects. This advanced three-phase inverter features a 650 V power module, multi-motor support, FPGA control, and extensive protection features ensuring reliable, high-performance operation. Perfect for engineers and technicians looking for precise control of AC induction, PMSM, and BLDC motors. Enjoy quick delivery and dedicated support when you purchase this versatile development platform online, designed to streamline your motor control applications with superior power capacity and flexible control strategies.
Get SECO Series Motor Control Board today—built for precision, high power, and industrial-grade motor testing reliability.
Frequently Asked Questions
Where can I buy ONSEMI SECOMDK4KW65SPM31GEVK?
You can click on the BUY or RFQ button to purchase SECOMDK4KW65SPM31GEVK from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part SECOMDK4KW65SPM31GEVK?
You can download the SECOMDK4KW65SPM31GEVK datasheet or visit the ONSEMI website for support.
Who is the manufacturer of SECOMDK4KW65SPM31GEVK?
ONSEMI
