ONSEMI 74LCX16244MTD 16-bit Buffer Driver
The 74LCX16244MTD is a low-voltage, 16-bit non-inverting buffer and line driver with 3-state outputs. Designed for use as memory and address drivers, clock drivers, or bus transceivers, it features nibble-controlled operation with separate 3-state control inputs for each nibble, which can be combined for full 16-bit operation. The device operates at low voltages (2.5V or 3.3V) and is compatible with 5V logic signals. Fabricated with advanced CMOS technology, it offers high-speed performance with low power consumption. Key features include power-down high impedance inputs and outputs, noise and EMI reduction circuitry, high latch-up immunity (exceeds 500mA), 5V tolerant inputs and outputs, voltage range from 2.3V to 3.6V, a propagation delay of approximately 4.5 nanoseconds at 10μA supply current, and support for live insertion and withdrawal. Typical applications include industrial control, clock and timing circuits, and signal processing.
ONSEMI 74LCX16244MTD 16-bit Buffer Driver Specifications:
- Package: 48-Lead Small Shrink Outline Package (SSOP), JEDEC MO-118
- Operating Voltage: 2.3V to 3.6V, compatible with 5V logic
- Power Dissipation: Low power CMOS technology
- Input/Output Voltage Tolerance: 5V tolerant inputs and outputs
- Propagation Delay: Approximately 4.5 nanoseconds at 10μA supply current
- Output Drive: 424 mA (Voc = 3.0V), high current capability up to 500 mA latch-up immunity
- Control: Nibble-controlled operation with separate 3-state control pins
- Power-down: High impedance inputs and outputs during power-down
- Application Environment: Industrial control, clock driving, bus transceivers
- Mechanical: 48-Lead SSOP package, dimensions: 0.300 inches wide

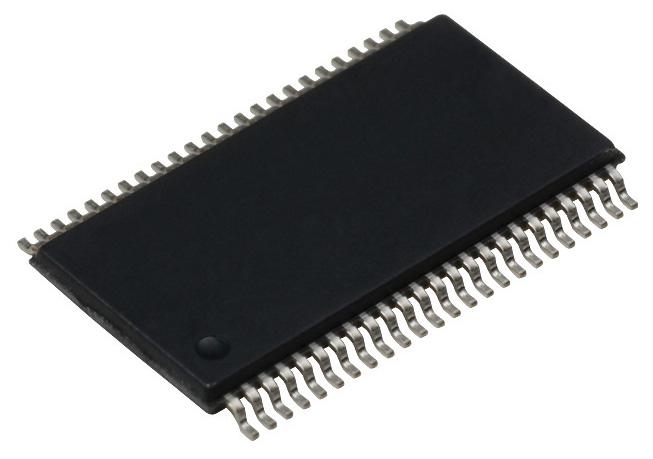

Buy the Buy ON Semiconductor 74LCX16244 Part Number 74LCX16244MTD Online
Enhance your circuits with the high-speed, low-voltage 16-bit buffer and line driver. Manufactured with advanced CMOS technology, it offers 3-state outputs and reliable performance for industrial control, clock, and signal processing applications. Its 5V tolerance and power-down high impedance mode make it suitable for diverse environments. The 74LCX16244MTD is available in a compact 48-Lead SSOP package, ensuring easy integration into your design. Purchase online to ensure quick delivery and consistent quality for your engineering projects.
Buy ON Semiconductor 74LCX16244MTD now and experience unmatched reliability and high-speed performance for your signal buffering and bus control needs.
Frequently Asked Questions
Where can I buy ONSEMI 74LCX16244MTD?
You can click on the BUY or RFQ button to purchase 74LCX16244MTD from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 74LCX16244MTD?
You can download the 74LCX16244MTD datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 74LCX16244MTD?
ONSEMI
