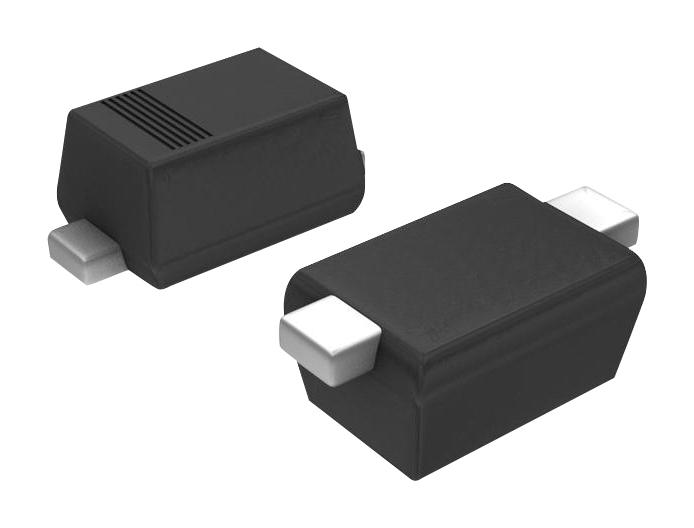

ONSEMI ES1JFL Ultrafast Rectifier
The ultrafast rectifier features a glass passivated junction, maximum reverse voltage of 600 V, and a peak surge current of 30 A. It has a compact SOD-123F package, operates over a temperature range of -55°C to +150°C, and is RoHS compliant. The device boasts a fast switching speed with a maximum Tj of 35 ns, and a low forward voltage of 1.7 V at 1 A. It is ideal for high-speed switching, power rectification, and industrial applications requiring reliable, ultrathin components.
ONSEMI ES1JFL Ultrafast Rectifier Specifications:
- Repetitive Peak Reverse Voltage: 600 V
- RMS Voltage: 420 V
- DC Blocking Voltage: 600 V
- Maximum Forward Current at 120°C: 1 A
- Peak Forward Surge Current, 8.3 ms: 30 A
- Operating and Storage Temperature Range: -55°C to +150°C
- Thermal Resistance Junction-to-Ambient: 200 °C/W
- Thermal Resistance Junction-to-Case: 30 °C/W
- Forward Voltage: 1.7 V at 1 A
- Reverse Current at 100°C: 10 μA
- Capacitance: 7 pF at 4 V, 1 MHz
- Reverse Recovery Time: 22.55 to 35 ns
- Maximum Height: 1.08 mm
- Package: SOD-123F, Case 425AD
- RoHS Compliant: Yes
- UL Flammability: 94V-0
- Band indicates Cathode
Buy the Fairchild ES1JFL – Reliable Ultrafast Rectifier for Industrial Applications
Purchase the Fairchild ES1JFL ultrafast rectifier online today. Engineered with a glass passivated junction, maximum 600 V, 30 A surge, and a compact SOD-123F package, it ensures reliable high-speed switching. Perfect for industrial power applications, it offers a fast 35 ns switching speed, low forward voltage, and RoHS compliance. Its robust design enables durable performance in demanding environments with temperature ranges from -55°C to +150°C. Order now for efficient power rectification in your electrical systems.
Get Fairchild ES1JFL today—built for precision and long-lasting durability in high-speed power rectification and industrial circuits.
Frequently Asked Questions
Where can I buy ONSEMI ES1JFL?
You can click on the BUY or RFQ button to purchase ES1JFL from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part ES1JFL?
You can download the ES1JFL datasheet or visit the ONSEMI website for support.
Who is the manufacturer of ES1JFL?
ONSEMI
