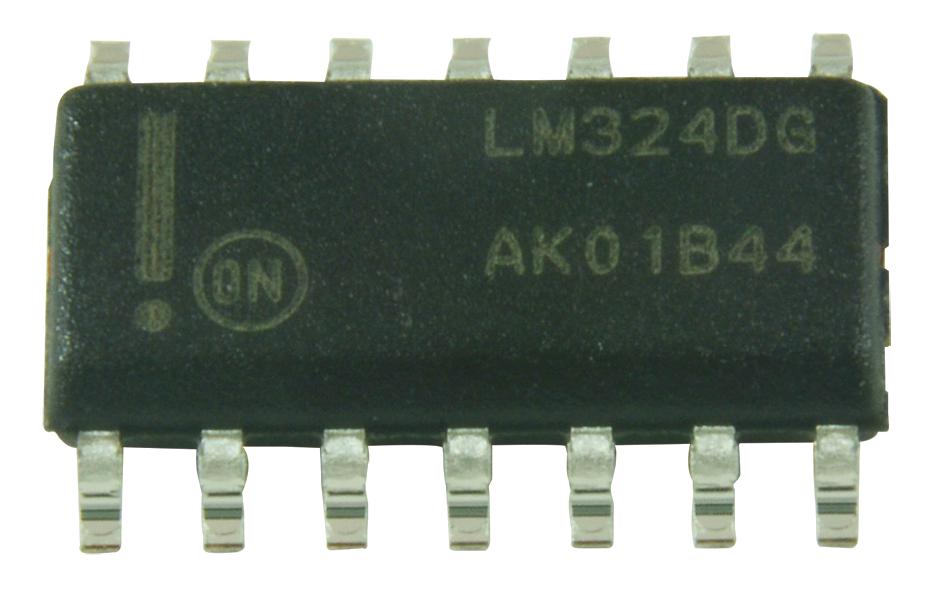

ONSEMI LM324DG Quad Operational Amplifier
The LM324DG is a quad operational amplifier featuring true differential inputs, optimized for single-supply applications. It operates on supply voltages ranging from 3V to 32V and has low quiescent current, approximately one-fifth that of comparable devices. The amplifier includes a common-mode input range that extends to the negative supply voltage, eliminating the need for external biasing components in many cases. Its output voltage range covers the negative supply voltage, and the device offers short-circuit protected outputs, internal compensation, and industry-standard pin configuration. Additional ruggedness is provided by ESD clamps on the inputs, and the device supports continuous short-circuit operation. Suitable for automotive applications, this amplifier provides reliable performance in demanding environments.
ONSEMI LM324DG Quad Operational Amplifier Specifications:
- Supply Voltage Range: 3V to 32V
- Input Offset Voltage: 20-70 mV (max)
- Input Bias Current: 30-50 nA (max)
- Output Voltage Range: Includes negative supply voltage
- Short Circuit Protected Outputs: Yes
- Common Mode Voltage Range: 0V to Vcc - 1.7V
- Temperature Range: -40°C to +125°C (automotive qualified)
- ESD Protection: 2000V (HBM)
- Package Types: PDIP-14, SOIC-14, TSSOP-14
- Power Dissipation: Specific to package, handled via heatsinking
- Internal Compensation: Yes
- Industry Standard Pinout: Yes
Buy the Buy ON Semiconductor LM324DG Part Number LM324DG Online
Order the ON Semiconductor LM324DG quad operational amplifier online today to ensure your projects benefit from true differential inputs, low quiescent current, and rugged design. This versatile op-amp operates from 3V to 32V single supply, making it suitable for automotive, industrial, and consumer electronics. It features internal compensation, short-circuit protected outputs, and industry-standard pinouts, simplifying your design process. Purchase now to enjoy quick delivery, comprehensive support, and the confidence of using a reliable, automotive-qualified device in your critical applications.
Buy ON Semiconductor LM324DG now and experience unmatched reliability and versatile single-supply operation for automotive and industrial applications.
Frequently Asked Questions
Where can I buy ONSEMI LM324DG?
You can click on the BUY or RFQ button to purchase LM324DG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part LM324DG?
You can download the LM324DG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of LM324DG?
ONSEMI
