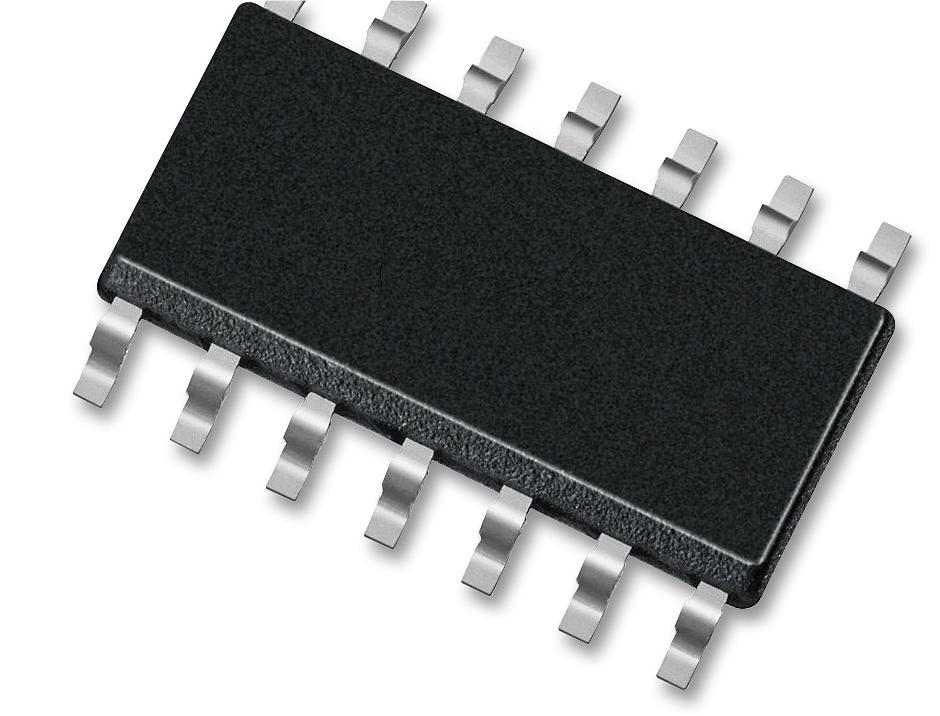

ONSEMI FAN7393AMX High-Voltage Power Driver
The FAN7393A is a high-voltage half-bridge gate driver IC capable of driving MOSFETs and IGBTs operating up to 600V. It features programmable dead-time control, shutdown, UVLO functions, and a high-current output stage designed for fast switching with minimal cross-conduction. Its level-shift circuit enables high-side operation to Vg=-9.8V at Vgg=15V, ensuring stable performance under high dv/dt noise conditions. Suitable for inverter applications, motor drives, switching power supplies, and induction heating systems, it ensures reliable and efficient operation in demanding power conversions.
ONSEMI FAN7393AMX High-Voltage Power Driver Specifications:
- High-Side Floating Supply Voltage: -0.3 to 625 V
- Vgg-COM Voltage Endurance: 5 V
- High-voltage operation up to 600V
- Input logic voltage: 0 to 25 V
- Maximum junction temperature: +150°C
- Quiescent supply current: 1000 pA
- Output voltage: Vop=20 V minimum, Vo=100 mV maximum
- Turn-on delay: 530-730 ns, Turn-off delay: 130-250 ns
- Dead-time: 300-500 ns, Rise time: 25-50 ns, Fall time: 15-35 ns
- Thermal resistance: 110°C/W
- Package: 14-SOP
Buy the Fairchild Series High-Voltage Power Driver: FAN7393A
Discover the high-voltage power driver IC perfect for your inverter, motor drive, and power supply applications. The FAN7393A features programmable dead-time, UVLO, and noise canceling, ensuring stable and efficient operation up to 600V. Its high-current output stage minimizes switching losses and cross-conduction, making it ideal for high-speed power MOSFET and IGBT gate driving. With a compact 14-SOP package, it ensures robust performance across a wide temperature range, delivering reliability for demanding industrial and automation systems. Purchase online today to enhance your projects with trusted power drive technology.
Order your Fairchild Series FAN7393A today and give your high-power inverter and motor drive projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy ONSEMI FAN7393AMX?
You can click on the BUY or RFQ button to purchase FAN7393AMX from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FAN7393AMX?
You can download the FAN7393AMX datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FAN7393AMX?
ONSEMI
