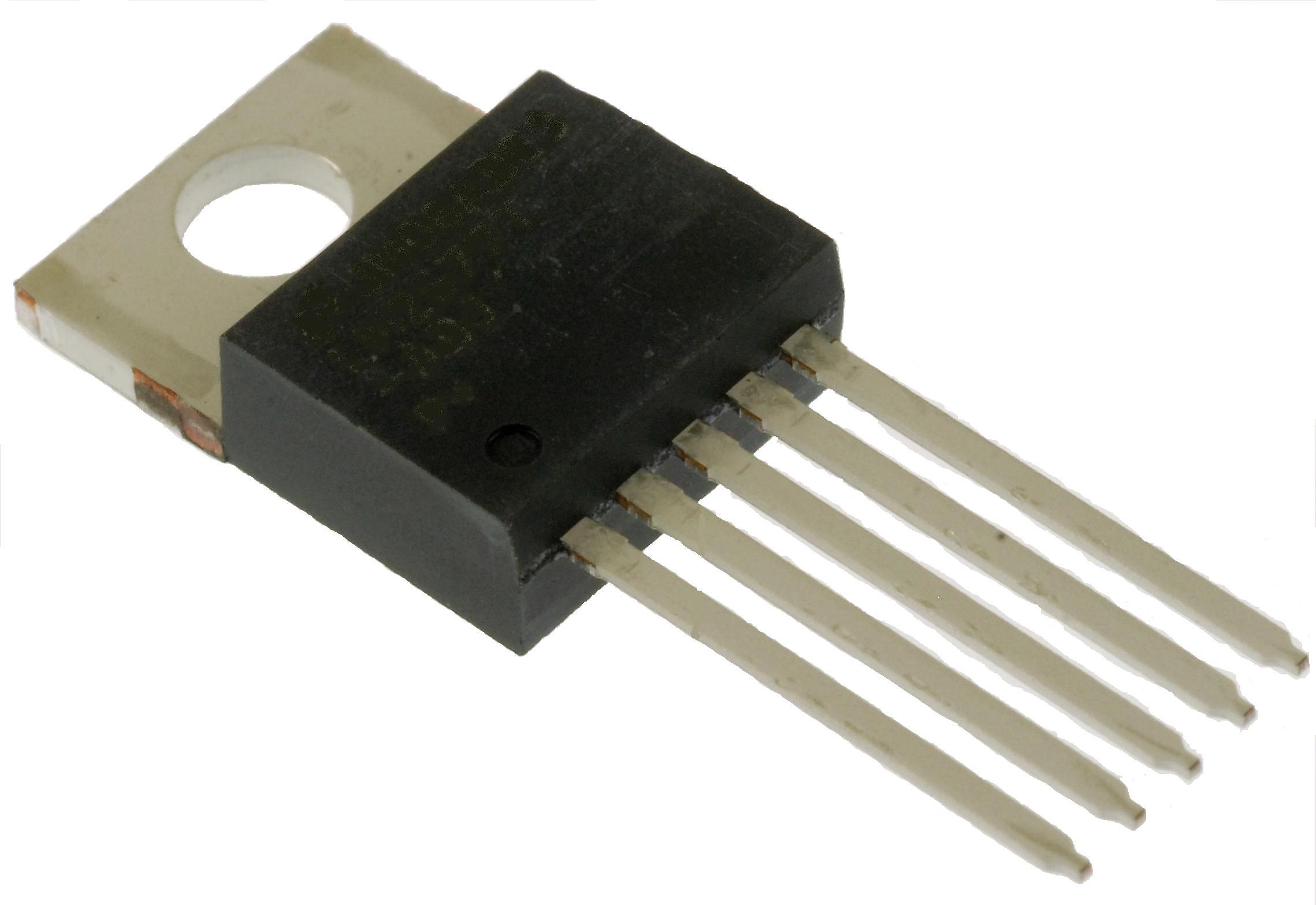

ONSEMI FSCQ1565RTYDTU Power Switch
The FSCQ1565RTYDTU is a 650V integrated power switch designed for 170W offline flyback converters. It features a high-voltage SenseFET and an integrated PWM controller optimized for quasi-resonant converters, which offer lower electromagnetic interference (EMI) and higher efficiency compared to traditional hard-switching methods. This device is ideal for noise-sensitive applications such as consumer electronics, signal processing, and audio equipment. It includes advanced protections like overload, overvoltage, and over-current shutoffs with auto-restart, thermal shutdown, under-voltage lockout, and soft-start functionality. Additional features include burst-mode operation for low standby power, pulse-by-pulse current limiting, and extended quasi-resonant switching, making it suitable for efficient, reliable switch-mode power supplies.
ONSEMI FSCQ1565RTYDTU Power Switch Specifications:
- Voltage Rating: 650 V
- Switching Frequency: 90 kHz (normal) / 45 kHz (extended QR)
- Max Continuous Drain Current: 3.4 A
- Power Dissipation: 50 W
- Thermal Shutdown: 140°C
- Operating Temperature Range: -25°C to +85°C
- Storage Temperature Range: -55°C to +150°C
- Pulse-by-Pulse Current Limit: 6.00 A (max.)
- Soft-start Time: 20 ms
- Protection: Overload, Overvoltage, Overcurrent, Thermal shutdown, UVLO
- Control Pin: VFB, SYNC, GND, DRAIN, and VCC
- Package: TO-220F-5L
Buy the Fairchild Series FSCQ Power Switch: FSCQ1565RTYDTU
Order the Fairchild FSCQ1565RTYDTU online today to take advantage of high efficiency, compact design, and robust protection functions ideal for noise-sensitive switch-mode power supplies up to 170W. This integrated power switch combines a high-voltage SenseFET and PWM controller with burst mode for low standby power. Its advanced protections include overload, overvoltage, overcurrent, and thermal shutdown, ensuring safe, reliable operation. Perfect for consumer electronics, audio equipment, and signal processing, enabling you to build efficient, noise-immune power converters effortlessly.
Buy Fairchild FSCQ1565RTYDTU now and experience unmatched reliability and performance in your flyback power supplies with advanced protection features.
Frequently Asked Questions
Where can I buy ONSEMI FSCQ1565RTYDTU?
You can click on the BUY or RFQ button to purchase FSCQ1565RTYDTU from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FSCQ1565RTYDTU?
You can download the FSCQ1565RTYDTU datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FSCQ1565RTYDTU?
ONSEMI
