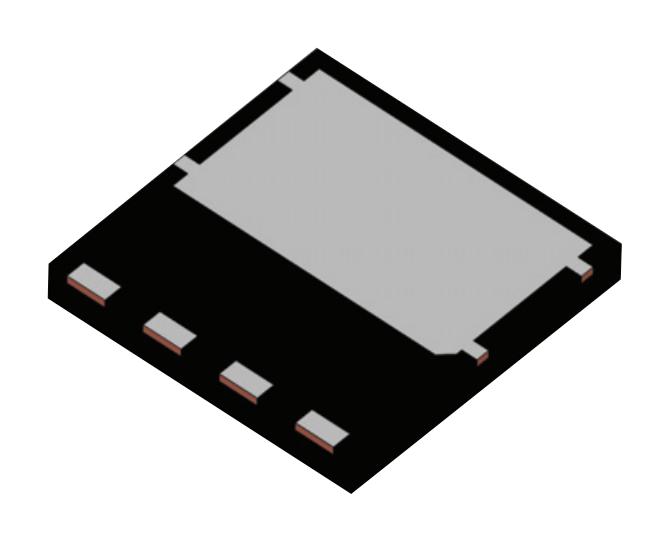

ONSEMI FCMT180N65S3 High-Voltage Power MOSFET
The FCMT180N65S3 is a high-voltage N-channel SuperFET® III MOSFET designed for industrial power applications. Offering a drain-source voltage of 650 V and continuous drain current of 17 A, this ultra-slim Power88 package device features low gate charge, low on-resistance, and excellent switching performance. It is optimized for telecom, server power supplies, UPS, solar power systems, and industrial power supplies, providing efficient, reliable operation with a compact footprint. Fully avalanche tested and RoHS compliant, it helps manage EMI and simplifies circuit design.
ONSEMI FCMT180N65S3 High-Voltage Power MOSFET Specifications:
- Voss Drain to Source Voltage: 650 V
- Gate to Source Voltage: ±80 V
- Continuous Drain Current: 17 A
- Pulsed Drain Current: 42.5 A
- Maximum Power Dissipation: 111 W
- Operating Temperature Range: -55°C to +150°C
- Thermal Resistance, Junction to Ambient: 45 °C/W
- Thermal Resistance, Junction to Case: 0.9 °C/W
- Gate Threshold Voltage: 25-45 V
- Static Drain to Source On Resistance: 152 mΩ (Typ), 180 mΩ (Max)
- Output Capacitance (Coss): 30 pF (Typ)
- Input Capacitance (Ciss): 1350 pF (Typ)
- Total Gate Charge at 10V: 33 nC
- Gate to Source Gate Charge: 8 nC
- Switching Delay Time: 17 ns
- Fall Time: 43 ns
- Rise Time: 16 ns
- Body Diode Forward Voltage: 12 V at 8.5 A
- Body Diode Reverse Recovery Time: 290 ns
- Repetitive Avalanche Energy: 1.39 mJ
- Device Package: Power88, 8x8 mm, Slim Surface-Mount
- RoHS Compliant, 100% Avalanche Tested
Buy the ON Semiconductor FCMT180N65S3 – Reliable MOSFET for Industrial Applications
Buy the ON Semiconductor FCMT180N65S3 now to ensure efficient power management for your industrial and telecom power supplies. This reliable high-voltage MOSFET features a 650 V drain-source voltage, low gate charge, and low on-resistance, delivering superior switching performance. Its compact Power88 package makes it ideal for space-constrained applications like UPS, solar power systems, and industrial drives. Fully avalanche tested and RoHS compliant, this device offers durability, safety, and excellent thermal characteristics, ensuring long-term operation in demanding power environments.
Get ON Semiconductor FCMT180N65S3 today—built for precision, high voltage switching, and long-lasting durability in industrial power systems.
Frequently Asked Questions
Where can I buy ONSEMI FCMT180N65S3?
You can click on the BUY or RFQ button to purchase FCMT180N65S3 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FCMT180N65S3?
You can download the FCMT180N65S3 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FCMT180N65S3?
ONSEMI
