ONSEMI FDMA905P PowerTrench MOSFET
This P-Channel PowerTrench MOSFET provides low on-state resistance, making it ideal for battery charge and load switching in cellular handsets and ultraportable applications. Featuring a compact MicroFET 2X2 mm package with excellent thermal performance, it operates up to 150°C and handles continuous drain current of -10A with a drain-source voltage of -12V. Its low gate threshold, gate charge, and capacitance ensure efficient switching. Compliant with RoHS, it offers reliable performance in linear mode applications, supporting modern portable device power management.
ONSEMI FDMA905P PowerTrench MOSFET Specifications:
- Drain Source Voltage: -12 V
- Drain Current (Continuous): -10 A
- Power Dissipation: 24 W
- Junction Operating Temperature Range: -55°C to +150°C
- Maximum Rds(on): 16 mΩ at Vgs = 4.5 V, 21 mΩ at Vgs = -2.5 V, 82 mΩ at Vgs = -1.8 V
- Gate to Source Voltage: ±8 V
- Thermal Resistance, Junction to Case: 69°C/W
- Thermal Resistance, Junction to Ambient: 52°C/W (with 1 in² pad, 2 oz copper)
- Package: MicroFET 2X2 mm, RoHS Compliant, halogen-free

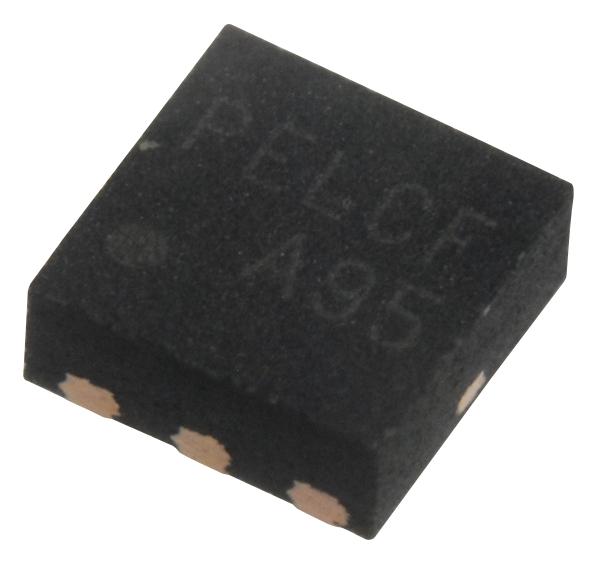

Buy the Fairchild Series MicroFET FDMA905P: PowerTrench P-Channel MOSFET
Purchase the Fairchild PowerTrench MOSFET FDMA905P online for reliable battery and load switching in cellular devices. Its compact MicroFET 2X2 mm package delivers excellent thermal performance and low Rds(on), ensuring efficient power management. With a maximum drain source voltage of -12 V and continuous drain current of -10A, it is suitable for ultraportable applications. RoHS compliant and halogen-free, this MOSFET guarantees high-quality, eco-friendly performance in linear mode switching, perfect for modern portable electronics. Order now for fast delivery and consistent performance.
Get Fairchild FDMA905P today—built for precision, low on-resistance, and long-lasting durability in portable power applications.
Frequently Asked Questions
Where can I buy ONSEMI FDMA905P?
You can click on the BUY or RFQ button to purchase FDMA905P from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FDMA905P?
You can download the FDMA905P datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FDMA905P?
ONSEMI
