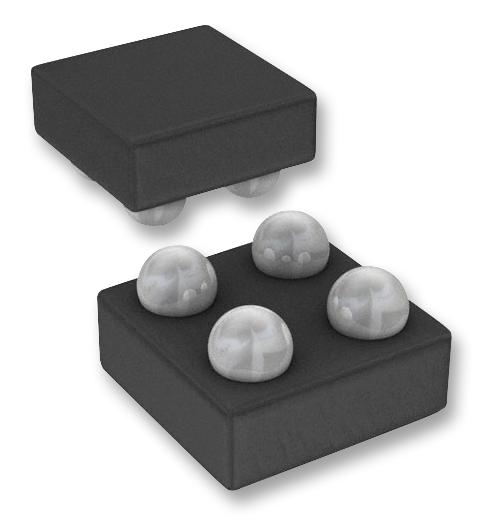

ONSEMI NCP398FCCT1G Overvoltage Protection IC
The NCP398 is a high-efficiency overvoltage protection device designed for VCONN applications in USB Type-C systems. It features integrated overvoltage lockout up to +28 V, a power MOSFET for controlling inrush current during power-up, and thermal shutdown protection. The IC continuously monitors input voltages, with an enable pin to control operation. Suitable for smartphones, tablets, and system protection, it ensures safe operation by preventing damage from overvoltage events while allowing rapid response. The compact WLCSP4 and UDFN6 packages facilitate easy integration and thermal management.
ONSEMI NCP398FCCT1G Overvoltage Protection IC Specifications:
- Over-voltage protection: Up to +28 V
- Package options: WLCSP4 (0.84 x 0.84 mm), UDFN6 (2 x 2 mm)
- Maximum input voltage: 28 V
- Typical quiescent current: 15 μA (EN high), 40 μA (EN low)
- Thermal shutdown temperature: 150°C
- Maximum continuous current: 0.8 A
- Operating temperature: -40°C to +85°C
- Over-voltage lockout hysteresis: 115 mV
- Input voltage range: 0.3 V to 28 V
- ESD rating: 2 kV (HBM), 1 kV (CDM)
- Enable pin control; automatic output discharges on shutdown
- Supports rapid response to overvoltage events with <100 ns turn-off time
- Designed for system-level protection in mobile and consumer electronics
- Incorporates thermal shutdown feature for overload safety
- RoHS compliant, Pb-Free package
Buy the NCP Series Protection VCONN Overvoltage: NCP398FCCT1G
Secure your USB Type-C VCONN circuits with the NCP398 overvoltage protection IC. This compact, reliable device features rapid response to voltage surges, built-in thermal shutdown, and lockout at +28 V, ensuring your smartphones, tablets, and system components stay protected. Easy to integrate with small package options like WLCSP4 and UDFN6, it provides efficient inrush current control and safe operation. Order online today to enhance your system’s safety and performance with this high-performance protection IC.
Buy NCP Semiconductor Protection VCONN Overvoltage device now and experience unmatched reliability and performance in USB Type-C systems.
Frequently Asked Questions
Where can I buy ONSEMI NCP398FCCT1G?
You can click on the BUY or RFQ button to purchase NCP398FCCT1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCP398FCCT1G?
You can download the NCP398FCCT1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCP398FCCT1G?
ONSEMI
