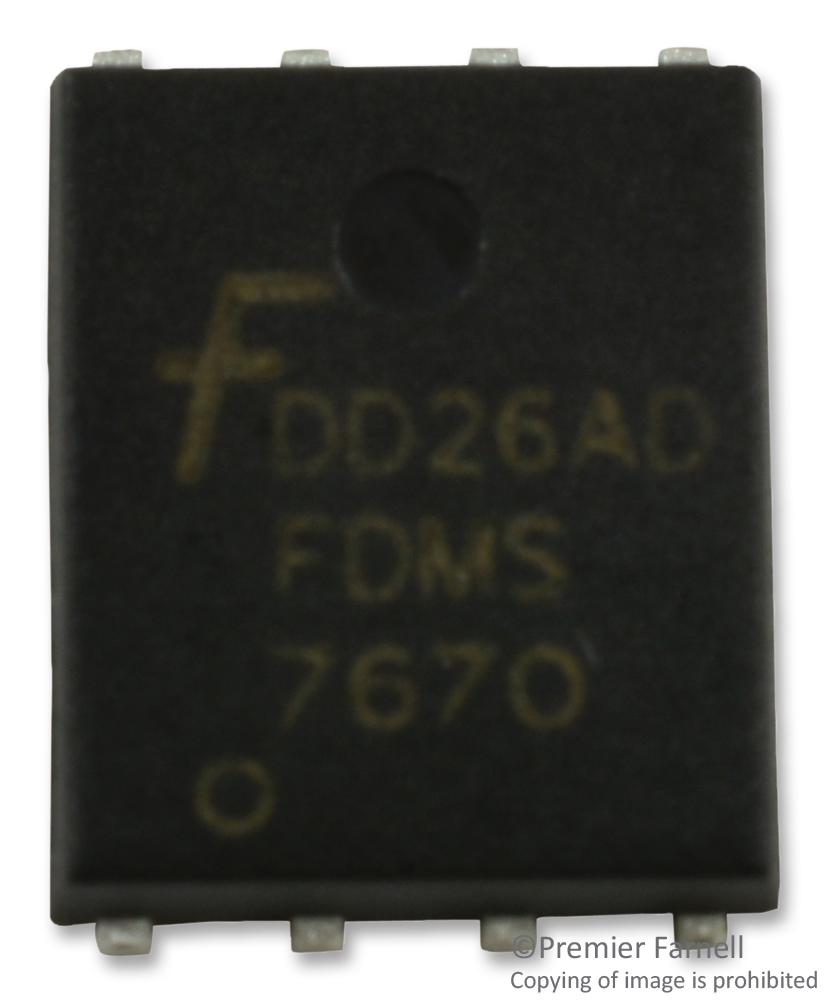

ONSEMI FDMS7670 Power MOSFET
This N-Channel PowerTrench MOSFET is designed for improved efficiency in DC/DC converters and switching applications. It features low rpg(on), fast switching, and a robust package. Engineered with advanced silicon and enhanced body diode technology for soft recovery, it minimizes EMI in synchronous buck converters. Suitable for Vcore switching in notebooks, desktops, and servers, as well as load switches and DC-DC conversion, it offers high current handling, low on-resistance, and reliable operation across a wide temperature range, ensuring optimal performance in demanding power management systems.
ONSEMI FDMS7670 Power MOSFET Specifications:
- Drain to Source Voltage: 30 V
- Gate to Source Voltage: ±20 V
- Continuous Drain Current (Silicon limited): 105 A
- Power Dissipation: 62 W
- Operating Junction Temperature Range: -55 to +150°C
- Rds(on): 3.8 mo (Vgs=10 V, Id=21 A), 5.0 mo (Vgs=4.5 V, Id=17 A)
- Thermal Resistance, Junction to Ambient: 50°C/W
- Package: Power 56
- Max Avalanche Energy: 144 mJ
- Thermal Resistance, Junction to Case: 2.0°C/W
Buy the Buy ON Semiconductor FDMS7670 Part Number FDMS7670 Online
Purchase the ON Semiconductor FDMS7670 now to improve your power converter designs with low Rds(on), fast switching speeds, and robust packaging. This high-current N-Channel MOSFET delivers excellent efficiency and thermal performance suitable for Vcore switching in laptops, desktop VRMs, and industrial power applications. Featuring advanced silicon technology and enhanced body diode performance for soft recovery, it ensures minimal EMI and reliable operation under demanding conditions. Order online today to secure this essential component for your power management projects, backed by ON Semiconductor's trusted quality.
Order your ON Semiconductor FDMS7670 power MOSFET today and enhance your power efficiency with reliable high-current switching performance.
Frequently Asked Questions
Where can I buy ONSEMI FDMS7670?
You can click on the BUY or RFQ button to purchase FDMS7670 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FDMS7670?
You can download the FDMS7670 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FDMS7670?
ONSEMI
