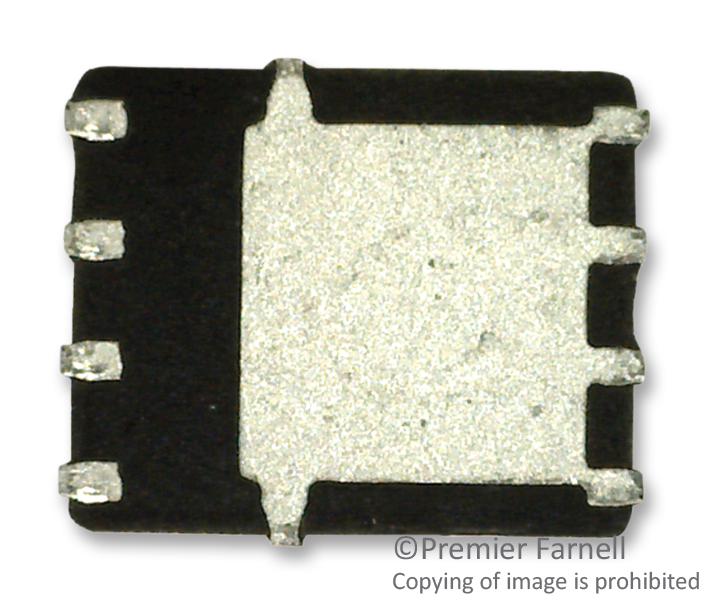

ONSEMI FDMS86182 Power MOSFET
The FDMS86182 is a high-performance N-Channel Shielded Gate PowerTrench MOSFET designed for efficient power switching in various industrial and electronics applications. It features a maximum drain-source voltage of 100 V, continuous drain current of 78 A, and a low Rds(on) of 7.2 mΩ at 10 V Vgs, optimized for low on-resistance and high-speed switching. Its robust PowerTrench technology ensures excellent thermal and switching performance, making it ideal for use in DC-DC converters, motor drives, and power management systems. The device complies with RoHS standards and is suitable for demanding power electronics environments.
ONSEMI FDMS86182 Power MOSFET Specifications:
- Drain to Source Voltage: 100 V
- Continuous Drain Current: 78 A
- Gate to Source Voltage: +20 V
- Drain-Source On Resistance: 7.2 mΩ at Vgs = 10 V
- Maximum Power Dissipation: 83 W at 25°C
- Operating and Storage Temperature Range: -55°C to +150°C
- Package: Power 56, Reel Size: 13", Taping Width: 12mm, Quantity: 3000 units
- Thermal Resistance, Junction to Case: 15°C/W
- Thermal Resistance, Junction to Ambient: 50°C/W
- Avalanche Energy: 216 mJ
- Gate Charge: 26-37 nC
Buy the ON Semiconductor FDMS86182 – Reliable PowerTrench MOSFET for Industrial Applications
Purchase the ON Semiconductor FDMS86182 power MOSFET online today—engineered for high-efficiency power switching with low Rds(on) of 7.2 mΩ, suitable for industrial, motor drive, and power conversion systems. Its high current capacity of 78 A and thermal robustness ensure reliable performance under demanding conditions. The device features advanced PowerTrench technology for reduced switching noise and excellent thermal management. Easily integrate this versatile MOSFET into your power electronics projects for improved efficiency, durability, and precision control.
Get ON Semiconductor FDMS86182 today—built for precision, high speed switching, and long-lasting durability in power electronics.
Frequently Asked Questions
Where can I buy ONSEMI FDMS86182?
You can click on the BUY or RFQ button to purchase FDMS86182 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FDMS86182?
You can download the FDMS86182 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FDMS86182?
ONSEMI
