ONSEMI FDA59N30 N-Channel Power MOSFET
The FDA59N30 is a 300V N-channel UFET MOSFET utilizing planar stripe and DMOS technology. Designed to lower on-state resistance and boost switching efficiency, it features a robust avalanche energy capacity and an improved body diode with lifetime control, resulting in a reverse recovery time under 100ns and high dv/dt immunity. Its low gate charge and 100% avalanche testing make it ideal for switching power converters such as power factor correction, flat panel display TV power supplies, ATX systems, and electronic lamp ballasts, ensuring reliable performance in demanding applications.
ONSEMI FDA59N30 N-Channel Power MOSFET Specifications:
- Drain-Source Voltage: 300 V
- Drain Current - Continuous: 59 A at 25°C, 35 A at 100°C
- Pulsed Drain Current: 236 A
- Avalanche Energy: 1734 mJ (single pulse), 50 mJ (repetitive)
- Maximum Power Dissipation: 500 W
- Thermal Resistance, Junction-to-Case: 0.25 °C/W
- Thermal Resistance, Junction-to-Ambient: 40 °C/W
- Gate Threshold Voltage: 30 - 50 V
- Gate-Source Voltage: ±30 V
- Input Capacitance: 3590 - 4670 pF
- Output Capacitance: 710 - 920 pF
- Switching Delay Times: 140 - 290 ns
- Total Gate Charge: 77 - 100 nC
- Body Diode Forward Voltage: 14 V
- Operating Temperature Range: -55°C to +150°C
- Package: TO-3PN

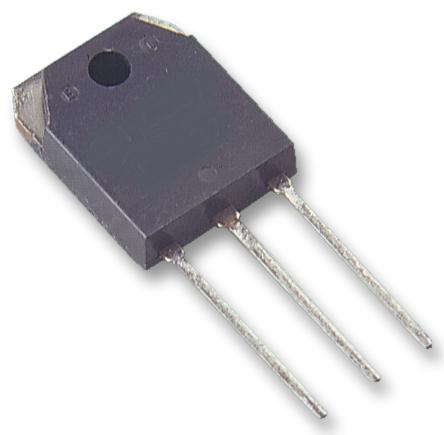

Buy the Buy ON Semiconductor FDA59N30 Part Number 300V N-Channel UFET MOSFET Online
Enhance your power conversion projects with the ON Semiconductor FDA59N30. This 300V N-channel MOSFET offers low on-resistance, high avalanche energy capacity, and fast switching performance. Suitable for power supplies, TV converters, and electronic ballasts, it provides reliable and efficient operation under demanding conditions. Its robust design includes a lifetime-controlled body diode, ensuring minimal reverse recovery issues and improved system longevity. Purchase online today for high-performance, durable power management solutions tailored for industrial and consumer applications.
Get ON Semiconductor FDA59N30 today—built for high voltage switching, low on-resistance, and reliable power management in industrial and consumer electronics.
