ONSEMI FDMS86250 Power MOSFET
The FDMS86250 is an N-Channel Shielded Gate PowerTrench MOSFET designed for high efficiency switching applications such as DC-DC converters. Constructed using advanced PowerTrench technology with Shielded Gate architecture, it offers low on-resistance and robust performance under high voltages up to 150 V and continuous drain current of 30 A. Key features include a power dissipation of 96 W at 25°C, thermal resistance of 1.3°C/W junction to case, and RoHS compliance. Its compact power package ensures reliability and ease of mounting in demanding power management circuits.
ONSEMI FDMS86250 Power MOSFET Specifications:
- Drain to Source Voltage: 150 V
- Gate to Source Voltage: ±20 V
- Continuous Drain Current: 30 A
- Pulsed Drain Current: 100 A
- Power Dissipation: 96 W at 25°C
- Thermal Resistance, Junction to Case: 1.3°C/W
- Operating Junction Temperature Range: -55°C to +150°C
- Input Capacitance: 1750 pF
- Output Capacitance: 220 pF
- Gate Resistance: 0.5 Ω
- Switching Delay Time: 14 ns
- Rise Time: 43 ns
- Fall Time: 22 ns
- Total Gate Charge: 25–36 nc
- Reverse Recovery Time: 73–117 ns
- Body Diode Forward Voltage: 0.72–0.78 V
- Package: Power 56

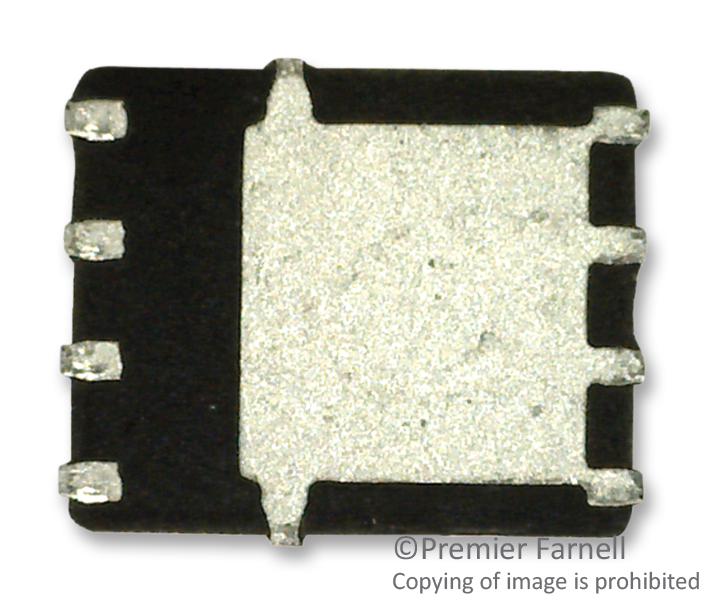

Buy the Buy ON Semiconductor FDMS86250 Part Number Online
Get the ON Semiconductor FDMS86250 Power MOSFET online now to ensure reliable high-current switching for DC-DC conversion and power management projects. This advanced N-channel MOSFET features low on-resistance, a maximum voltage of 150 V, and a continuous drain current of 30 A, making it ideal for high-performance electronic designs. Its PowerTrench architecture coupled with Shielded Gate technology guarantees superior switching efficiency, thermal stability, and robustness. Purchase today and elevate your electronic systems’ efficiency and durability with this trusted power component.
Order your ON Semiconductor FDMS86250 Power MOSFET today and enhance your power conversion efficiency with this robust, low-loss, high-voltage device.
Frequently Asked Questions
Where can I buy ONSEMI FDMS86250?
You can click on the BUY or RFQ button to purchase FDMS86250 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FDMS86250?
You can download the FDMS86250 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FDMS86250?
ONSEMI
