ONSEMI FEBFIS1100MEMSIMU6D3X Inertial Motion Sensor
FIS1100 is a comprehensive 6D MEMS inertial measurement unit (IMU) featuring integrated sensor fusion with the AttitudeEngine™ co-processor, delivering high-precision 3D motion tracking and orientation in a compact package. It integrates a 3-axis gyroscope, 3-axis accelerometer, and connection to external magnetometers, supporting real-time sensor auto-calibration, extensive power management modes, and data synchronization at up to 1 kHz. Ideal for applications requiring accurate orientation, motion detection, and low power consumption, such as wearable tech, robotics, and AR/VR devices.
ONSEMI FEBFIS1100MEMSIMU6D3X Inertial Motion Sensor Specifications:
- Sensor Type: 3-axis gyroscope, 3-axis accelerometer, optional external magnetometer
- Sample Rate: Up to 1 kHz in normal mode, 8 kHz in optical image stabilization mode
- Orientation Accuracy: ±3° pitch & roll, ±5° yaw/heading with XKF3 fusion
- Operating Temperature: -40°C to 85°C
- Supply Voltage: 2.4V to 3.3V
- Power Consumption: Typically 20-2750 μA depending on mode and sensors enabled
- Communication Interface: I2C and SPI (3-wire and 4-wire support)
- Data Output: Quaternion, velocity increments, raw sensor data
- Buffer Size: 1536 bytes FIFO
- Integrated Temperature Sensor, Auto Calibration, Motion on Demand Technology
- Support for external magnetometer calibration and magnetic distortion immunity
- Physical Dimensions: 3.3 x 3.3 x 1 mm LGA package
- Extended temp range: -40°C to 85°C
- Supports various operational modes including power-down, ready, IMU, 9D fusion, wake on motion, and optical image stabilization

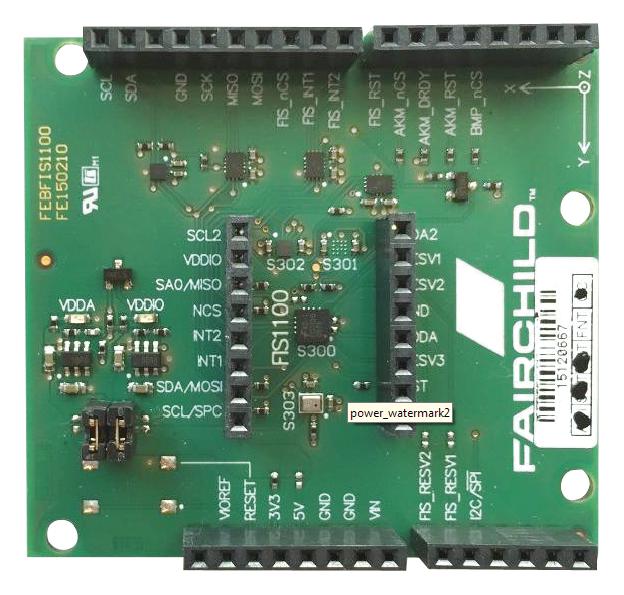

Buy the Buy FAIRCHILD FIS1100 Part Number FEBFIS1100MEMSIMU6D3X Online
Experience unparalleled accuracy with the FAIRCHILD FIS1100 IMU, combining high-performance 6D sensing with advanced sensor fusion technology. This compact sensor delivers precise orientation, velocity, and motion data, ideal for demanding applications like robotics, wearables, and AR/VR systems. Its low power modes and extensive calibration features ensure efficiency and reliability. Purchase online today for a sophisticated, ready-to-integrate inertial sensing solution that enhances your product's performance and user experience.
Get FAIRCHILD FIS1100 today—designed for precise 3D motion tracking, low power operation, and reliable sensor fusion in compact applications.
Frequently Asked Questions
Where can I buy ONSEMI FEBFIS1100MEMSIMU6D3X?
You can click on the BUY or RFQ button to purchase FEBFIS1100MEMSIMU6D3X from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FEBFIS1100MEMSIMU6D3X?
You can download the FEBFIS1100MEMSIMU6D3X datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FEBFIS1100MEMSIMU6D3X?
ONSEMI
