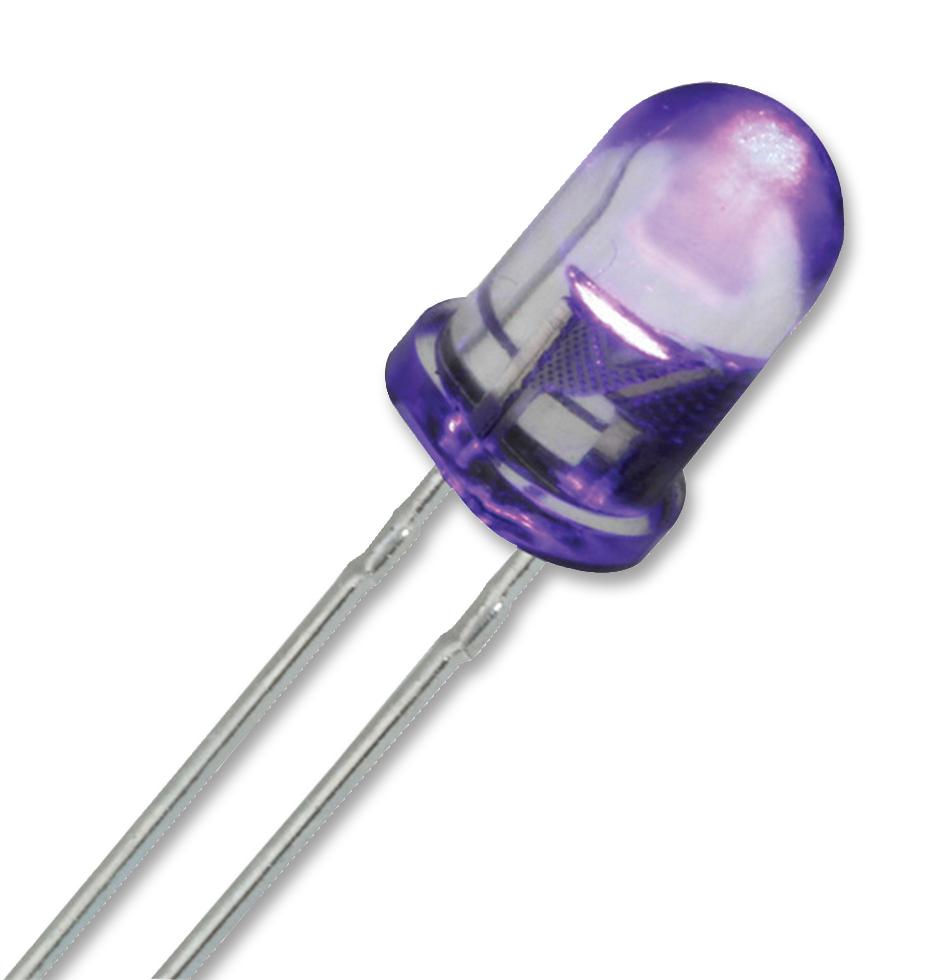

ONSEMI QED223 infrared LED
The QED223 is an 880nm AlGaAs infrared LED housed in a T-1 3/4 plastic package with a 5mm lens diameter, high output power, and a medium emission angle of 30°. It features a clear purple tinted encapsulation, matched photosensor compatibility, and operates within a temperature range of -40°C to +100°C. Designed for optical and sensing applications, the LED offers forward voltage around 17V, peak radiant intensity of 25 mW/sr, and accommodates continuous forward currents up to 100mA, with an absolute maximum peak forward current of 15A, making it suitable for high-power infrared detection systems.
ONSEMI QED223 infrared LED Specifications:
- Package type: T-1 3/4 (5mm lens diameter)
- Wavelength: 880 nm
- Emission angle: 30°
- Forward voltage: 17 V at 100mA
- Peak radiant intensity: 25 mW/sr
- Operating temperature: -40°C to +100°C
- Storage temperature: -40°C to +100°C
- Maximum soldering temperature: 240°C for 5 sec
- Maximum power dissipation: 200 mW
- Continuous forward current: 100 mA
- Peak forward current: 15 A
- Reverse voltage: 5 V
- Junction capacitance: 1 pF
- Temperature coefficient of wavelength: 0.2 nm/°C
Buy the Fairchild Series QED Infrared LED: QED223
Purchase the Fairchild QED223 infrared LED online today for high power, 880nm wavelength, 30° emission angle, and durable plastic package ideal for sensing and emitter systems. Designed with reliable operation in a temperature range of -40°C to +100°C, it offers a forward voltage of approximately 17V at 100mA, and a peak radiant intensity of 25 mW/sr. Its robust construction supports continuous use at up to 100mA, making it perfect for optical communication, sensing, and emitter modules requiring high output and stability.
Get Fairchild QED223 infrared LED today—built for high power emission and reliable optical sensing in demanding applications.
Frequently Asked Questions
Where can I buy ONSEMI QED223?
You can click on the BUY or RFQ button to purchase QED223 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part QED223?
You can download the QED223 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of QED223?
ONSEMI
