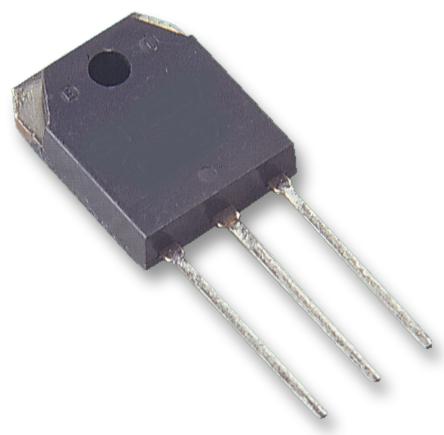

ONSEMI FGA30T65SHD High-Voltage Power IGBT
The FGA30T65SHD is a high-performance 650 V, 30 A field stop trench IGBT designed with novel technology for solar inverters, UPS, welders, telecom, ESS, and PFC applications. It features high current capability, low saturation voltage of 1-6 V at 30 A, fast switching, and high input impedance, ensuring efficient power management. Its robust construction supports high junction temperatures up to 175°C, with tested parameters for industrial and renewable energy systems, providing reliable and tight parameter distribution for optimized system performance.
ONSEMI FGA30T65SHD High-Voltage Power IGBT Specifications:
- Collector to Emitter Voltage: 650 V
- Collector Current at Tj=26°C: 60 A
- Collector Current at Tj=100°C: 30 A
- Pulsed Collector Current: 90 A
- Operating Junction Temperature: -55°C to 175°C
- Maximum Power Dissipation at Tj=26°C: 238 W
- Thermal Resistance, Junction to Case (IGBT): 0.63°C/W
- Thermal Resistance, Junction to Ambient: 40°C/W
- Gate to Emitter Voltage: +20 V
- Maximum Soldering Lead Temp: 300°C for 5 sec
Buy the ON Semiconductor Series High-Voltage IGBT: FGA30T65SHD
Purchase the ON Semiconductor Series High-Voltage IGBT FGA30T65SHD online today and enhance your power conversion projects with this reliable, high-capacity device. Designed for solar inverters, UPS systems, welders, telecom, and energy storage applications, this IGBT offers low conduction and switching losses, fast switching times, and robust thermal performance. Its high junction temperature rating up to 175°C and tested parameter consistency guarantee dependable operation across diverse industrial and renewable energy systems, making it an ideal choice for demanding applications.
Order your ON Semiconductor Series High-Voltage IGBT FGA30T65SHD today and ensure your power systems operate with exceptional reliability and efficiency.
Frequently Asked Questions
Where can I buy ONSEMI FGA30T65SHD?
You can click on the BUY or RFQ button to purchase FGA30T65SHD from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FGA30T65SHD?
You can download the FGA30T65SHD datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FGA30T65SHD?
ONSEMI
