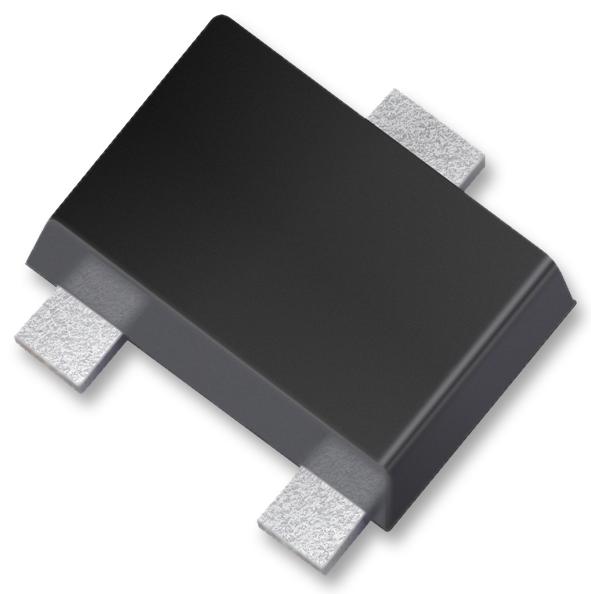

ONSEMI BAV70M3T5G Dual Switching Diode
The BAV70M3T5G is a dual switching diode with common cathode configuration, housed in the compact SOT-723 surface-mount package. Designed for low-power switching applications, it offers a reverse voltage of 100V and a forward current of 200mA. The device features low capacitance of 1.8pF, fast recovery time of 6.0ns, and excellent thermal characteristics, making it suitable for space-constrained circuit designs. Its RoHS compliance ensures environmentally friendly manufacturing and reliable performance in modern electronic systems.
ONSEMI BAV70M3T5G Dual Switching Diode Specifications:
- Reverse Voltage: 100 V
- Forward Current: 200 mA
- Peak Forward Surge Current: 500 mA
- Reverse Breakdown Voltage: 100 V
- Leakage Current: Max 1.0 μA at 100 V, Max 60 μA at 150°C
- Diode Capacitance: 1.8 pF
- Forward Voltage: Max 1.25 V at 150 mA
- Recovery Time: 6.0 ns
- Thermal Resistance, Junction-to-Ambient: 195 °C/W
- Maximum Power Dissipation: 640 mW
- Operating Temperature Range: -55°C to +150°C
- Package: SOT-723, Case 631AA
Buy the Buy ON Semiconductor BAV70M3T5G Dual Switching Diode Part Number BAV70M3T5G Online
Enhance your electronic designs with the BAV70M3T5G dual switching diode, offering space-saving SOT-723 packaging, 100V reverse voltage, 200mA forward current, low capacitance, and rapid recovery time. Perfect for low-power switching circuits needing reliable performance and minimal board space. Its RoHS compliance guarantees environmentally friendly manufacturing. Whether for consumer electronics, industrial automation, or communication devices, this diode ensures optimal switching performance, durability, and compactness to elevate your projects and streamline circuit designs. Buy online now for fast delivery and quality assurance.
Get ON Semiconductor BAV70M3T5G today—engineered for space-efficient low-power switching with fast recovery and high reliability.
Frequently Asked Questions
Where can I buy ONSEMI BAV70M3T5G?
You can click on the BUY or RFQ button to purchase BAV70M3T5G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part BAV70M3T5G?
You can download the BAV70M3T5G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of BAV70M3T5G?
ONSEMI
