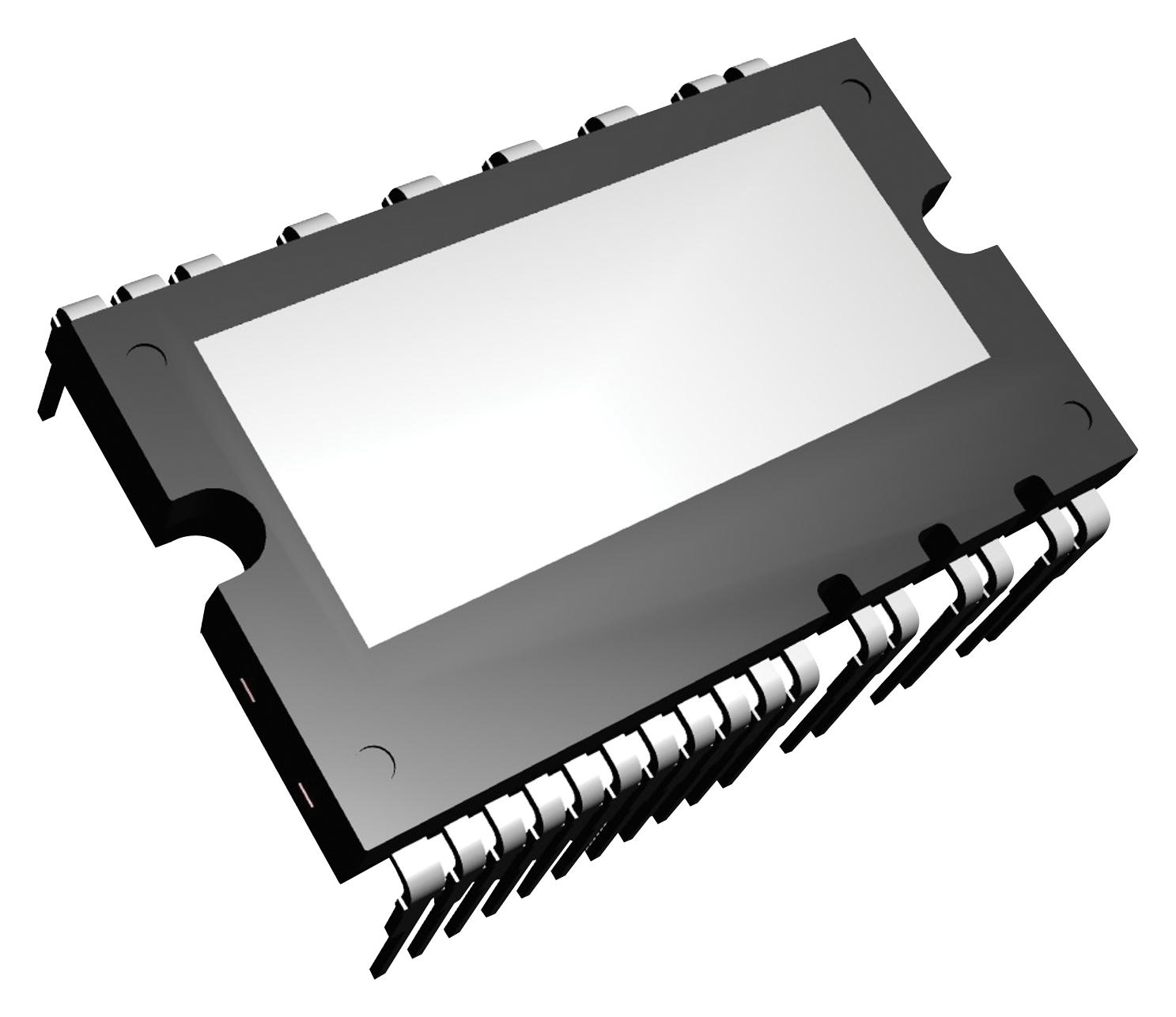

ONSEMI FNA41560T2 Motor Drive Module
The FNA41560T2 is a high-performance, 600V, 15A 3-phase inverter module designed for AC induction, BLDC, and PMSM motors. It integrates optimized gate drives for high-efficiency switching, built-in protection features including undervoltage lockout, over-current shutdown, and thermal monitoring. This module simplifies PCB layout with built-in bootstrap diodes, dedicated Vs pins, and separate open-emitter pins for current sensing. Suitable for industrial motion control and home appliances, it features a compact package, high isolation voltage, and low thermal resistance for reliable operation at high switching speeds and elevated temperatures.
ONSEMI FNA41560T2 Motor Drive Module Specifications:
- Voltage Rating: 600 V
- Current Rating: 15 A
- Isolation Voltage: 2000 V
- Package: SPMAB-C26 Rail
- Operating Junction Temperature: -40°C to 150°C
- Thermal Resistance: 3.20°C/W (junction to case) per inverter IGBT
- Built-in bootstrap diodes with 600 V reverse voltage
- Control Input Voltage: Active-HIGH, 3.3/5 V logic compatible
- Built-in NTC thermistor for temperature monitoring
- Leakage Current: 1 mA at VCE = VCES
- Switching times: ton 80-130ps, toff 85-135ps
- Reverse Recovery Time: 80-80ns
- Isolation Voltage: 2000 V AC for 1 minute
- Protective features: UVLO, SCP, fault reporting
Buy the ON Semiconductor Series Motion SPM® 45: FNA41560T2
Purchase the ON Semiconductor FNA41560T2 online today and enhance your industrial or home appliance applications with a robust, high-efficiency 3-phase inverter module. Featuring integrated gate drives, protection features including UVLO and SCP, and built-in bootstrap diodes, this module ensures reliable operation for AC induction, BLDC, and PMSM motors. Its compact design, high isolation voltage, and thermal efficiency make it perfect for demanding motion control applications. Efficiently integrate this module into your system and benefit from seamless control and protection.
Buy ON Semiconductor FNA41560T2 now and experience unmatched reliability and high-efficiency motor control with integrated protection features.
