ONSEMI FOD3182 High Speed MOSFET Driver
The FOD3182 is a high-speed, 3A output current optocoupler featuring an aluminium gallium arsenide (AlGaAs) LED optically coupled to a CMOS detector with integrated PMOS and NMOS output transistors. It is designed for efficient and reliable high-frequency driving of power MOSFETs in applications such as plasma display panels, motor control inverters, and high-performance DC-DC converters. The device is packaged in an 8-pin dual in-line format compatible with lead-free reflow soldering at 260°C. It offers high noise immunity, with typical common-mode rejection of 50kV/µs, and enables rail-to-rail output using P-Channel MOSFETs. Features include undervoltage lockout with hysteresis, fast switching speeds with a maximum propagation delay of 210ns, and a maximum switching frequency of 250kHz. Operating voltage range is from 10V to 30V. The device provides excellent isolation with 5000Vrms for one minute, minimum creepage and clearance distances of 8mm and 10-16mm respectively, and a minimal insulation thickness of 0.5mm. With a typical RDS(on) of 1.5Ω, it ensures low power dissipation and high efficiency. Suitable for applications in consumer electronics, signal processing, and power management. Note: Market demand has extended lead times; delivery may be delayed and discounts are not applicable.
ONSEMI FOD3182 High Speed MOSFET Driver Specifications:
- Maximum Storage Temperature: -40°C to +125°C
- Operating Temperature Range: -40°C to +100°C
- Peak Output Current: 3A
- Propagation Delay: 210ns max
- Pulse Width Distortion: 65ns max
- Switching Frequency: up to 250kHz
- Operating Voltage Range: 10V to 30V
- Isolation Voltage: 5000Vrms for 1 minute
- Creepage Distance: min. 8.0mm
- Clearance Distance: 10mm to 16mm
- Insulation Thickness: 0.5mm
- Package: 8-pin dual in-line
- Led Forward Voltage: 1.3V at 10mA
- Output RDS(on): approx. 1.5Ω
- Maximum Power Dissipation: 250mW
- Minimum Lead Solder Temperature (Wave): 260°C for 10 sec

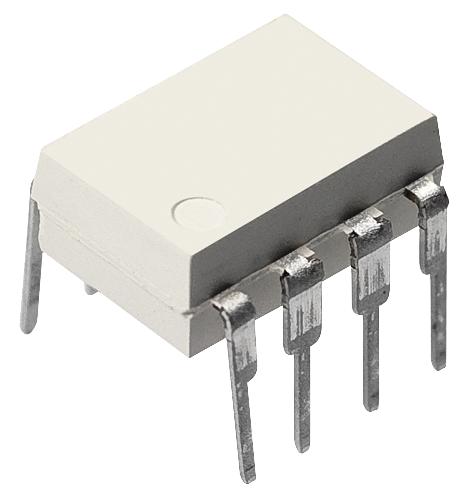

Buy the Fairchild Series FOD3182 High Speed MOSFET Gate Driver: FOD3182
Enhance your power electronics with the Fairchild FOD3182, a high-speed optocoupler capable of delivering 3A peak current for efficient MOSFET drive. It offers 5000Vrms isolation, fast propagation delay of 210 ns, and operates smoothly within 10V to 30V supply range. Its robust construction ensures high noise immunity, making it ideal for plasma displays, motor inverters, and high-frequency DC-DC converters. With lead-free packaging compatible with 260°C reflow processes and features like undervoltage lockout, the FOD3182 guarantees superior performance, reliability, and safety for demanding industrial or consumer applications.
Buy Fairchild FOD3182 now and experience unmatched reliability and performance in high-speed power MOSFET driving applications.
Frequently Asked Questions
Where can I buy ONSEMI FOD3182?
You can click on the BUY or RFQ button to purchase FOD3182 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FOD3182?
You can download the FOD3182 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FOD3182?
ONSEMI
