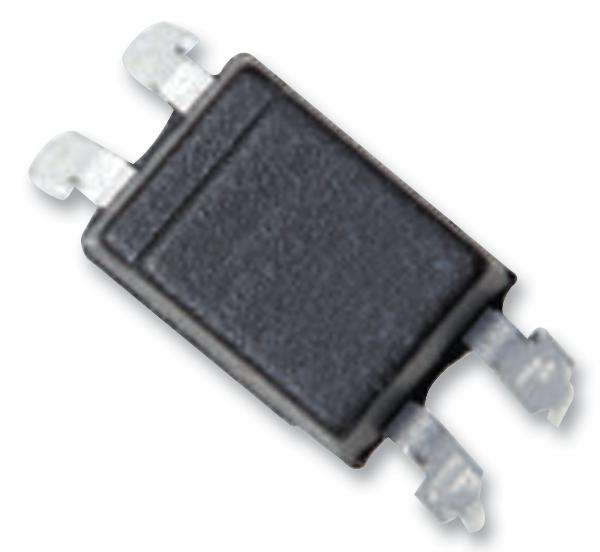

ONSEMI FOD817D3SD Optocoupler
The FOD817 Series consists of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 4-pin dual in-line package, suitable for power supply regulation, digital logic, and microprocessor inputs. It offers high current transfer ratios up to 600%, with excellent isolation ratings of 5000 VAC for 1 minute and an isolation resistance >10^10 Ω. Its safety ratings include UL1577 and IEC60747-5-5 standards, making it a reliable optocoupler for industrial circuit isolation and sensor interfaces, with maximum collector-emitter voltage of 70 V and input current of 50 mA.
ONSEMI FOD817D3SD Optocoupler Specifications:
- Current Transfer Ratio (CTR): Up to 600%
- Isolation Voltage: 5000 VAC for 1 minute
- Isolation Resistance: >10^10 Ω
- Collector-Emitter Voltage: 70 V
- Input Current: 50 mA max
- Power Dissipation (Collector): 150 mW
- Storage Temperature: -55°C to +150°C
- Operating Temperature: -55°C to +105°C
- Junction Temperature: -55°C to +125°C
- Solder Temperature: 260°C for 10 seconds
- Maximum Power Dissipation: 200 mW
- UL1577, IEC60747-5-5 safety approval
- Package: 4-pin DIP
- Carrier Tape Dimensions: 16 mm wide, pitch 4 mm
- Reflow Profile: Max. peak temperature 260°C, duration 30 seconds
- High isolation and safety ratings suitable for industrial and sensor applications.
Buy the ON Semiconductor FOD817D3SD – Reliable Optocoupler for Industrial Applications
Purchase the ON Semiconductor FOD817D3SD optocoupler online now and ensure reliable electrical isolation in your power supplies, digital logic, and sensor systems. This high-quality 4-pin device provides excellent safety ratings, high current transfer ratio up to 600%, and UL approved insulation strength of 5000 VAC, making it ideal for industrial automation, control circuits, and safety-critical applications. Buy online today and enhance your system’s performance with dependable, certified optocoupling technology.
Order your ON Semiconductor FOD817D3SD optocoupler today and equip your projects with a robust, high-CTR isolation component perfect for industrial circuits.
Frequently Asked Questions
Where can I buy ONSEMI FOD817D3SD?
You can click on the BUY or RFQ button to purchase FOD817D3SD from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FOD817D3SD?
You can download the FOD817D3SD datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FOD817D3SD?
ONSEMI
