ONSEMI FAN4010IL6XF113 High-Side Current Sensor
The FAN4010 is a high-side current sense amplifier designed for battery-powered systems, including portable PCs and cellular phones. It provides accurate, high-side current sensing with voltage scaling up to 2.5V, using an external sense resistor for flexible load current monitoring. Suitable for gas gauging, over-current detection, and power management, it features low offset current, high accuracy (-0.2%), and comes in a compact 6-Lead MicroPak™ MLP package. Ideal for applications requiring precise load current measurement without interfering ground references.
ONSEMI FAN4010IL6XF113 High-Side Current Sensor Specifications:
- Supply Voltage Range: 2V to 6V
- Sense Voltage Scaling: Up to 2.5V
- Offset Current: 2A Typical
- Quiescent Current: 3.5mA
- Accuracy: -0.2%
- Package: 6-Lead MicroPak™ MLP
- Operating Temperature: -40°C to +85°C
- Input Voltage Range: 0V to 6.3V
- Bandwidth: 600 kHz (small signal), 2 MHz (large signal)
- Output Current: ~1mA to 2mA
- Moisture Sensitivity Level: MSL-1

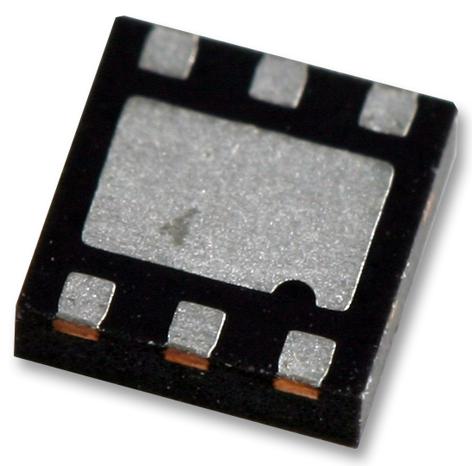

Buy the Buy ON Semiconductor FAN4010 Part Number FAN4010IL6XF113 Online
Discover the reliable high-side current sensing solution ideal for battery-powered devices such as portable PCs, cellular phones, and DC motor control. The FAN4010 provides accurate, low-offset current measurement with voltage scaling up to 2.5V, ensuring efficient power management and over-current monitoring. With a compact 6-Lead MicroPak™ package, it offers flexible load current monitoring without ground interference. Perfect for gas gauging and programmable current sources, buy online today to enhance your system's performance with trusted ON Semiconductor quality.
Buy ON Semiconductor FAN4010IL6XF113 now and experience unmatched reliability and precise high-side current sensing for portable power systems.
Frequently Asked Questions
Where can I buy ONSEMI FAN4010IL6XF113?
You can click on the BUY or RFQ button to purchase FAN4010IL6XF113 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FAN4010IL6XF113?
You can download the FAN4010IL6XF113 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FAN4010IL6XF113?
ONSEMI
