ONSEMI FPF2283CUCX Overvoltage Protection Switch
The FPF2283CUCX is a highly integrated Over-Voltage Protection power switch designed for system protection. It features an ultra low on-resistance (7 mΩ), fast 50 ns response to overvoltage events, and moisture detection capabilities via I2C interface. The device supports input voltage from 2.8 V to 28 V, current up to 7 A, and includes thermal shutdown, short circuit protection, and programmable over-voltage lockout. Its compact WLCSP20 package makes it suitable for mobile applications, USB ports, and portable devices requiring reliable overvoltage and moisture sensing in a small form factor.
ONSEMI FPF2283CUCX Overvoltage Protection Switch Specifications:
- Input Voltage Range: 2.8 V to 28 V
- Operating Temperature: -40°C to +85°C
- Maximum Continuous Current: 7 A
- On-Resistance: Typical 7 mΩ
- Over-Voltage Protection: Up to +28 V
- Response Time: Typical 50 ns
- Package: WLCSP20 (20 bump, 2.2x1.8 mm)
- Thermal Shutdown Temperature: 130°C with 20°C hysteresis
- ESD Protection: 8 kV contact discharge, 15 kV air gap
- Power Dissipation: Dependent on PCB layout, max junction temperature 150°C
- Communication Interface: I2C, 100kHz/400kHz/1MHz modes
- Moisture Detection: 8-bit ADC, programmable current source, detection threshold adjustable
- Integrated features include short circuit protection, thermal shutdown, programmable UVLO and OVLO thresholds
- Supported in automotive and portable consumer electronics for enhanced system reliability

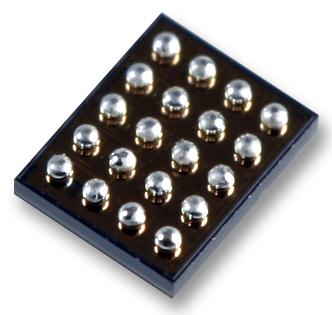

Buy the ON Semiconductor Series FPF2283 Overvoltage Protection Switch: FPF2283CUCX
Purchase the ON Semiconductor FPF2283CUCX today for advanced over-voltage protection and moisture detection in your portable electronics. Its low RDS(on), fast 50 ns response time, and compact WLCSP package make it ideal for mobile devices, USB charging, and small system designs. Designed to operate over -40°C to 85°C and support up to 7 A current, this versatile device provides robust short circuit protection, thermal shutdown, and programmable thresholds via I2C interface. Secure your project with this reliable, easy-to-integrate power protection solution.
Order your ON Semiconductor Series FPF2283CUCX overvoltage protection switch today and enhance your system's safety with fast, reliable overvoltage and moisture detection features.
Frequently Asked Questions
Where can I buy ONSEMI FPF2283CUCX?
You can click on the BUY or RFQ button to purchase FPF2283CUCX from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FPF2283CUCX?
You can download the FPF2283CUCX datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FPF2283CUCX?
ONSEMI
