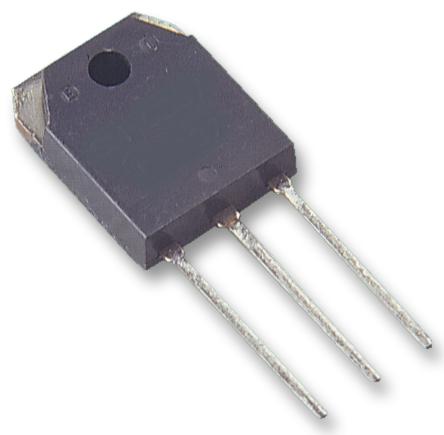

ONSEMI FQA28N15 Power MOSFET
The FQA28N15 is a 150V N-channel enhancement mode Power MOSFET manufactured using planar stripe and DMOS technology. This advanced device is designed to reduce on-state resistance, enhance switching performance, and withstand high avalanche energy levels. It is suitable for use in switched-mode power supplies, audio amplifiers, DC motor control, and variable switching power applications. The MOSFET features low gate charge, is 100% avalanche tested, and is rated for a junction temperature of up to 175°C. Due to high market demand, lead times may be extended, and delivery dates are subject to fluctuation. The product is exempt from discounts and intended for general-purpose applications.
ONSEMI FQA28N15 Power MOSFET Specifications:
- Drain-Source Voltage: 150 V
- Drain Current: 33 A (continuous at 25°C), 23.3 A (at 100°C), 132 A pulsed
- Gate-Source Voltage: +25 V
- Single Pulsed Avalanche Energy: 300 mJ
- Repetitive Avalanche Energy: 227 mJ
- Power Dissipation: 227 W (at 25°C), derated 1.52 W/°C above 25°C
- Maximum Junction Temperature: 175°C
- Thermal Resistance Junction-to-Case: 0.66°C/W
- Thermal Resistance Junction-to-Ambient: 40°C/W
- Package: TO-3PN
- Maximum Lead Soldering Temp: 300°C for 5 seconds
- Gate Threshold Voltage: 20-40 V
- Static Drain-Source On-Resistance: 0.067-0.09 Ω
- Gate Charge: 40-52 nC
- Capacitances: Input 1250-1600 pF, Output 260-340 pF, Reverse Transfer 50-65 pF
Buy the Fairchild FQA28N15 – Reliable Power MOSFET for Industrial Applications
Enhance your power management systems with the FQA28N15 Power MOSFET. Featuring 150V capacity, low on-resistance, and high avalanche energy, this device ensures superior switching and durability. Perfect for power supplies, motor control, and high-performance electronic applications, the FQA28N15 guarantees reliable operation under demanding conditions. Its low gate charge and thermal stability make it an ideal choice for industrial automation, HVAC, and power conversion systems. Purchase online today for fast delivery and guaranteed authenticity.
Buy Fairchild FQA28N15 now and experience unmatched reliability and power efficiency in your industrial projects.
Frequently Asked Questions
Where can I buy ONSEMI FQA28N15?
You can click on the BUY or RFQ button to purchase FQA28N15 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FQA28N15?
You can download the FQA28N15 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FQA28N15?
ONSEMI
