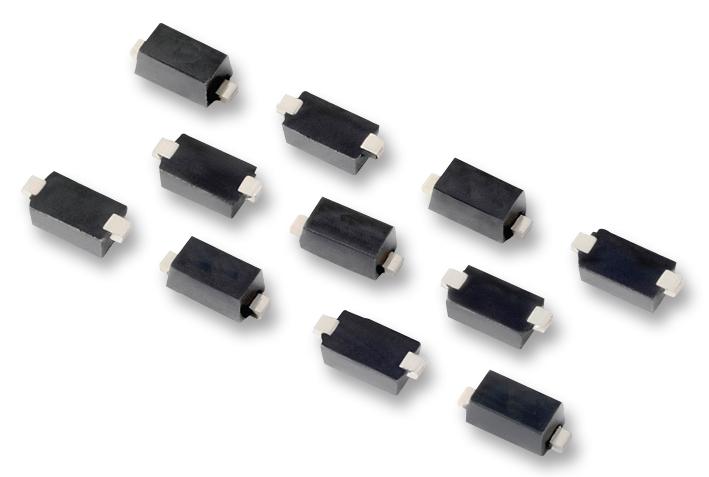

ONSEMI NSR0230M2T5G Schottky Diode
These high-speed Schottky barrier diodes are ideal for circuit protection, voltage clamping, and fast switching applications. Their extremely low forward voltage of 0.325 V at 10 mA reduces conduction loss, making them suitable for portable and space-constrained designs. Qualified to AEC standards, they are Pb-Free and feature a compact SOD-723 surface mount package, supporting reliable automotive and industrial applications with a maximum reverse voltage of 30 V and forward current of 200 mA. Their thermal and electrical ratings ensure durability under typical operating conditions.
ONSEMI NSR0230M2T5G Schottky Diode Specifications:
- Reverse Voltage: 30 V
- Forward Current: 200 mA
- Surge Peak Forward Current: 1.0 A (60 Hz, 1 cycle)
- Reverse Leakage Current: 10 V to 30 V, 100 nA to 10 μA
- Forward Voltage: 0.325 V at 10 mA, 0.500 V at 200 mA
- Total Capacitance: 10–15 pF at reverse voltages up to 30 V
- Thermal Resistance, Junction-to-Ambient: 600 °C/W
- Maximum Operating Temperature Range: -55°C to +125°C
- Total Device Dissipation: 167 mW at 25°C
- Pb-Free package with SOD-723 case, dimensions conforming to industry standards
Buy the On Semiconductor Series NS Series Schottky Diode: NSR0230M2T5G
Order the ON Semiconductor NSR0230M2T5G Schottky diode online today for reliable high-speed switching, low forward voltage, and compact design. This Pb-Free device is perfect for circuit protection, voltage clamping, and portable applications. With a maximum reverse voltage of 30 volts and forward current of 200 mA, it ensures robust performance and durability under demanding conditions. The SOD-723 surface mount package makes installation easy and space-efficient, ideal for automotive, industrial, and consumer electronics where space is limited and performance matters. Buy now to enhance your designs with trusted, high-quality diodes that deliver dependable operation and long-term reliability.
Buy ON Semiconductor NSR0230M2T5G now and experience unmatched reliability and performance in high-speed switching and circuit protection.
Frequently Asked Questions
Where can I buy ONSEMI NSR0230M2T5G?
You can click on the BUY or RFQ button to purchase NSR0230M2T5G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NSR0230M2T5G?
You can download the NSR0230M2T5G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NSR0230M2T5G?
ONSEMI
