ONSEMI FQP85N06 Power MOSFET
The FQP85N06 is a through-hole N-channel enhancement mode power MOSFET in a TO-220 package. Designed with planar stripe and DMOS technology, it offers low on-state resistance and excellent switching performance. The device features a drain-to-source voltage of 60V, continuous drain current of 85A, and power dissipation of 160W. It has a low gate charge of approximately 86nC, low reverse transfer capacitance around 165pF, and a low on-resistance of 800 milliohms at a gate source voltage of 10V. The operating temperature range spans from -55°C to 175°C, making it suitable for switch mode power supplies, audio amplifiers, DC motor control, and variable switching power applications.
ONSEMI FQP85N06 Power MOSFET Specifications:
- Drain-Source Voltage: 60 V
- Drain Current - Continuous: 85 A at 25°C
- Power Dissipation: 160 W at 25°C
- Gate Charge: Typ. 86 nC
- On-Resistance: Max. 0.008 Ω at Vgs=10V
- Reverse Transfer Capacitance: Typ. 165 pF
- Operating Temperature Range: -55°C to +175°C
- Package: TO-220
- Thermal Resistance, Junction-to-Case: Max. 0.94 °C/W
- Thermal Resistance, Junction-to-Ambient: Max. 62.5 °C/W
- Maximum Pulsed Drain Current: 300 A
- Avalanche Energy: 810 mJ

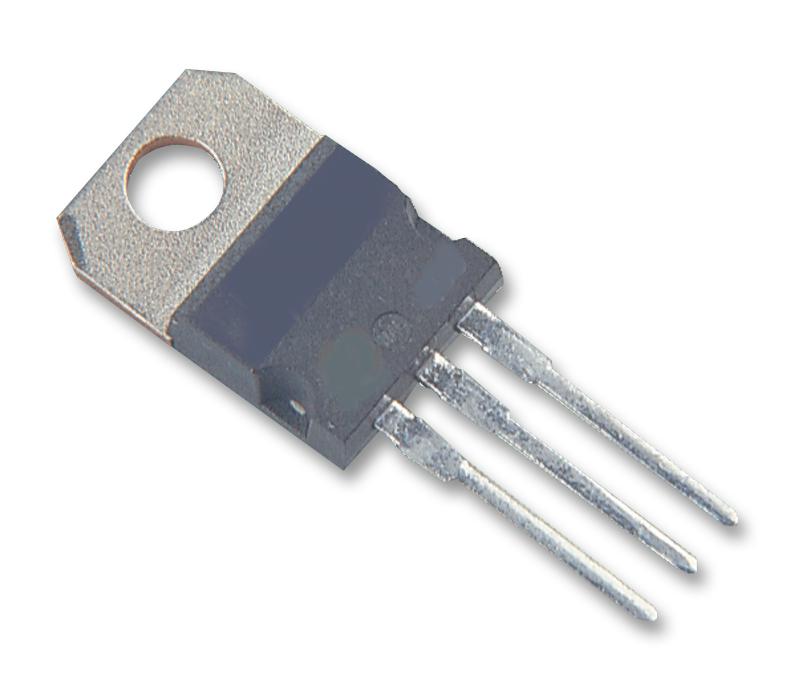

Buy the Buy ON Semiconductor FQP85N06 Part Number FQP85N06 Online
Purchase the ON Semiconductor power MOSFET FQP85N06 online today for reliable high-current switching performance. Designed with advanced DMOS technology, it offers low on-resistance, excellent thermal stability, and fast switching capabilities. Ideal for power supplies, motor control, and audio amplification, this device ensures efficient energy management and durable operation. With a wide operating temperature range up to 175°C and compact TO-220 packaging, it provides a flexible solution for various demanding electronic applications. Order now to experience superior quality and fast delivery, all at an affordable price.
Get ON Semiconductor FQP85N06 today—built for high-current switching, durability, and superior performance in power control applications.
Frequently Asked Questions
Where can I buy ONSEMI FQP85N06?
You can click on the BUY or RFQ button to purchase FQP85N06 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FQP85N06?
You can download the FQP85N06 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FQP85N06?
ONSEMI
