ONSEMI 74LCX16374MTD High-speed 16-Bit Flip-Flop
The 74LCX16374MTD is a 16-bit D-type flip-flop integrated circuit designed for bus-oriented applications. It features 5V tolerant inputs and outputs, making it suitable for low-voltage (2.5V or 3.3V) VCC environments while capable of interfacing with 5V signals. The device is byte-controlled, with a common clock and output enable (OE) that can be shorted for full 16-bit operation. It employs advanced CMOS technology to provide high-speed performance with low power consumption. Additional features include power-down high-impedance inputs and outputs, support for live insertion and withdrawal, noise and EMI reduction circuitry, and robust latch-up performance exceeding 500mA. The device also offers ±24mA output drive current and is suitable for applications in communications and networking.
ONSEMI 74LCX16374MTD High-speed 16-Bit Flip-Flop Specifications:
- Package Type: 48-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide
- Operating Voltage: 2.3V to 3.6V, VCC
- Input Voltage: DC input voltage range from -0.5V to VCC+0.5V
- Output Drive Current: ±24mA at VOH and VOL
- Propagation Delay: 6ns max at VCC = 3.3V
- Power Consumption: Very low CMOS power dissipation
- ESD Performance: Human body model > 2000V, Machine model > 200V
- Maximum Ratings: VCC up to +4.6V, Input Voltage up to VCC +0.5V, Operating temperature -55°C to +125°C
- Supports live insertion/withdrawal with high impedance outputs
- Noise/EMI reduction circuitry and latch-up performance exceeding 500mA

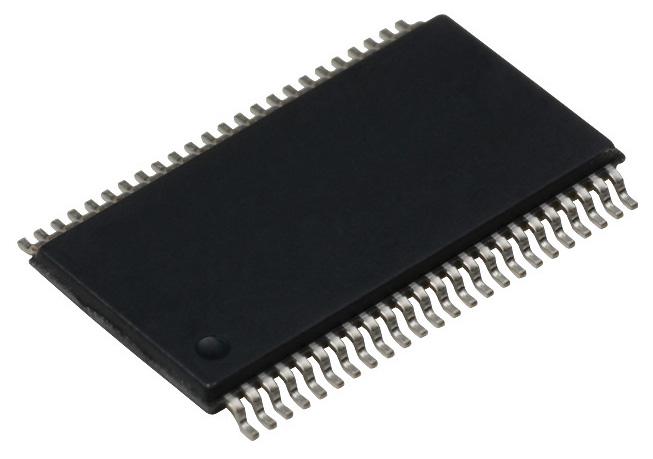

Buy the Fairchild Series 74LCX16374 Low Voltage 16-Bit D-Type Flip-Flop: 74LCX16374MTD
Order the Fairchild 74LCX16374MTD online now and enhance your communication and networking projects with high-speed, low-voltage CMOS flip-flops. These 16-bit D-type flip-flops feature 5V tolerant inputs and outputs, enabling seamless integration in low-voltage environments. Designed for bus-oriented applications, they support live insertion, EMI reduction, and deliver robust latch-up performance exceeding 500mA. With ±24mA drive capability, they ensure fast signal switching and reliable operation. Purchase today to enjoy optimal performance and long-lasting durability for your digital systems.
Get Fairchild 74LCX16374MTD today—built for high-speed performance, low power dissipation, and reliable bus communication.
Frequently Asked Questions
Where can I buy ONSEMI 74LCX16374MTD?
You can click on the BUY or RFQ button to purchase 74LCX16374MTD from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 74LCX16374MTD?
You can download the 74LCX16374MTD datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 74LCX16374MTD?
ONSEMI
